Radial pump unit wateroilwith electric motor
Add to favorites
Compare this product
Characteristics
- Technology
- radial
- Fluid
- water, oil
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for marine applications
- Applications
- high-pressure, transport
- Material
- metal
- Voltage
- 380 V
- Protection level
- standard
- Other characteristics
- compact, low-noise
- Flow
Max.: 6 m³/h
(211.888 ft³/h)Min.: 2 m³/h
(70.62933 ft³/h)- Pressure
Max.: 1,800 bar
(26,106.793 psi)Min.: 400 bar
(5,801.51 psi)- Power
Max.: 132 kW
(179.47 hp)Min.: 55 kW
(74.78 hp)- Fluid temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Length
Max.: 1,500 mm
(59 in)Min.: 1,200 mm
(47 in)- Width
Max.: 1,600 mm
(62.99 in)Min.: 700 mm
(27.56 in)- Height
Max.: 1,700 mm
(66.93 in)Min.: 500 mm
(19.69 in)- Weight
Max.: 3,000 kg
(6,613.87 lb)Min.: 600 kg
(1,322.77 lb)
Description

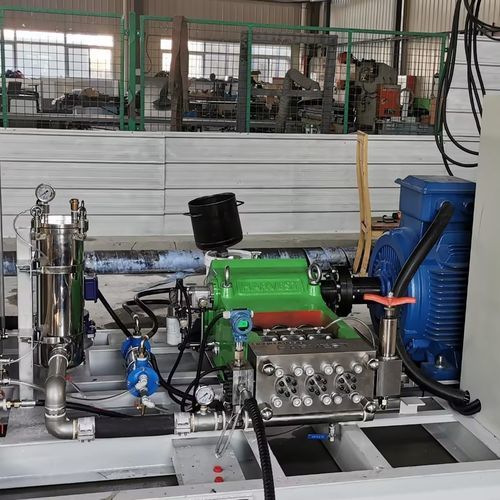

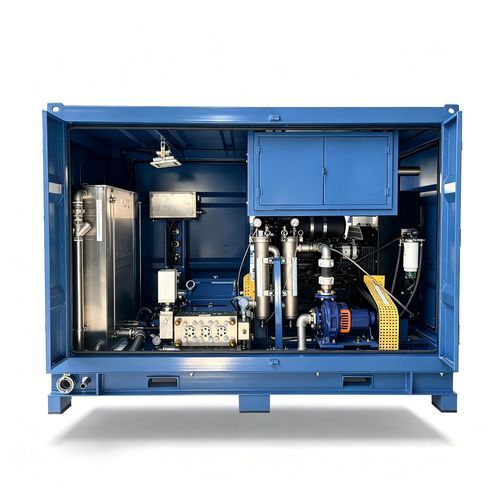

This series of products is a three-plunger electric high-pressure pump, which is widely used in petroleum equipment manufacturing, aerospace, military, shipbuilding, nuclear power, petrochemical, metallurgy and other fields, as a host or supporting equipment. The pump plus cleaning accessories can also be used as a washing machine.
Features: can be used for all kinds of pressure vessels, boilers, pipe fittings and other places that need to be pressure burst test and strength test, the pressure can reach 2800 kg, according to the need to lock the test pressure value, and can carry out automatic pressure holding. The conveying medium of the pump is generally room temperature water, and emulsion, anti-rust water and neutral oil with similar viscosity to water can also be used.
