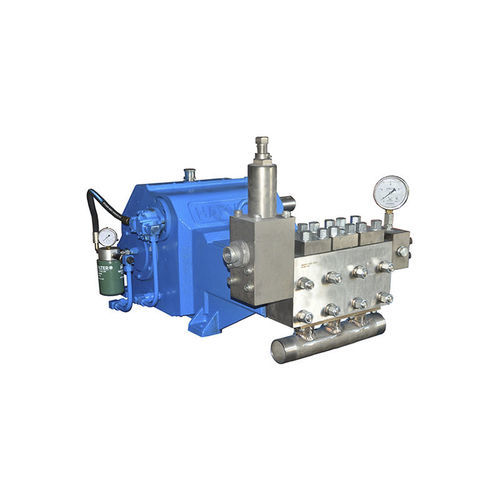

Plunger pump 3D2C wateroilelectric
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water, oil
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- injection, recovery
- Other characteristics
- large, flow
- Flow
Min.: 14.76 m³/h
(521.24448 ft³/h)Max.: 24.9 m³/h
(879.3352 ft³/h)- Power
Min.: 75 kW
(101.97 hp)Max.: 110 kW
(149.56 hp)- Length
1,135 mm
(45 in)- Width
792 mm
(31.18 in)- Height
684 mm
(26.93 in)- Weight
630 kg
(1,388.91 lb)
Description
high pressure pumps are improved on the basis of the pump 3D2A-S which are large flow plunger pumps with power max. 11 0kW and flow max. 415L/min. These pumps are applied to metallurgy dephosphorization, secondary oil recovery in oilfields, tertiary oil injection, injection, ground power source for hydraulic plunger pumps and other industrial applications requiring large flow rates. It can pump clear water, emulsion, and other chemical liquid similar with clear water.
