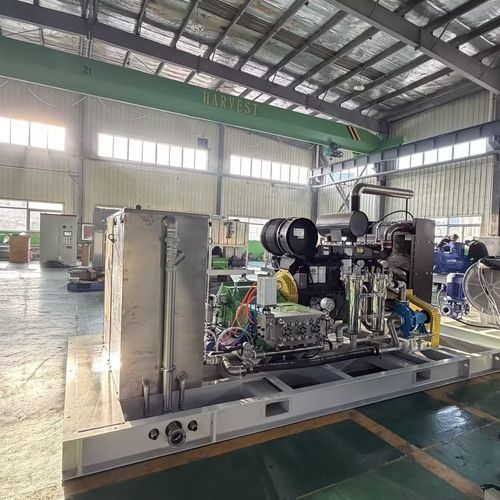

Plunger pump HW200E waterfor chemicalselectric
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water, for chemicals
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, chemical, for oil industry applications, for the mining industry, for marine applications, For the environmental industry, for the construction industry
- Applications
- washing, transfer, for water-jet cleaning, high-pressure, cleaning, drain, transport, for industrial applications, for water-jet cutting, for marine dredging, descaling, for cleaners, test, ultra high-pressure
- Material
- stainless steel
- Other characteristics
- automatic, self-adjusting
- Flow
Max.: 6.5 m³/h
(229.54533 ft³/h)Min.: 1.9 m³/h
(67.09787 ft³/h)- Pressure
Max.: 275 MPa
Min.: 45 MPa
- Head
Max.: 10 m
(32'09" )Min.: 1 m
(3'03" )- Power
Max.: 200 kW
(271.92 hp)Min.: 90 kW
(122.37 hp)- Fluid temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Length
Max.: 1,500 mm
(59 in)Min.: 1,300 mm
(51 in)- Width
Max.: 1,600 mm
(62.99 in)Min.: 800 mm
(31.5 in)- Height
Max.: 800 mm
(31.5 in)Min.: 500 mm
(19.69 in)- Weight
Max.: 1,800 kg
(3,968.32 lb)830 kg
(1,829.84 lb)Min.: 800 kg
(1,763.7 lb)
Description
high-pressure piston pump products based on 3D3 power end, matching the new hydraulic end, and independently developing and designing pressure up to 270MPa.
Technical features: 1. Straight-through hydraulic end, advanced technology, reasonable design, higher volumetric efficiency. 2. Highly sealed material, self-adjusting preload with pressure, automatic compensation of sealing. 3. Carbide plunger is strong and durable. 4. Easy maintenance: one person can complete the maintenance of the hydraulic end and replace the wearing parts. 5. The hydraulic end parts are made of precipitation hardened martensitic stainless steel, which is reliable and durable. 6. This product matches the new diaphragm type safety valve (original imported diaphragm) with simple operation, safe and reliable.
This series of products can transport 0~50 °C water, emulsion and other liquids with chemical properties similar to water. This series of high-pressure pumps are widely used in jet cleaning, electric power, powder metallurgy and other industries.
