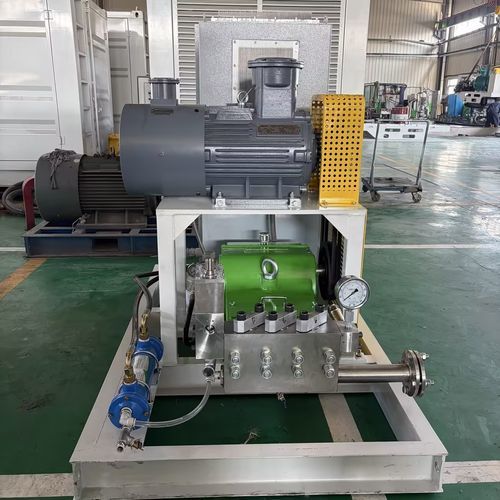

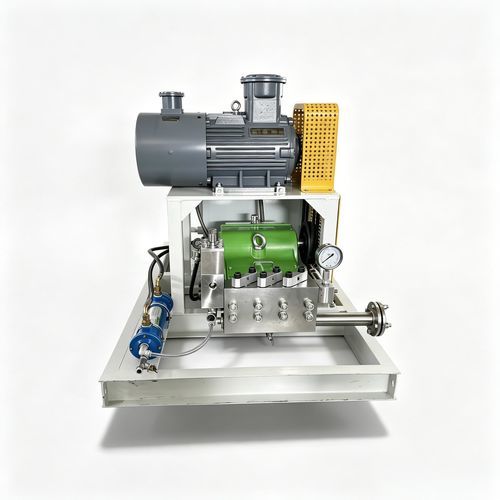

Plunger pump 3D2-Sslurryfuelwater
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water, for chemicals, slurry, for food products, fuel
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, chemical, for water treatment, for the food industry, for the petrochemical industry, for the mining industry, for the metallurgical industry, for maritime applications, for the transportation industry, for the construction industry
- Applications
- drain, transfer, high-pressure, cleaning, lubrication, washing, high-pressure cleaning, for industrial applications, for water-jet cleaning, for tube and pipe cleaning, descaling, test, surface treatment, for cleaners
- Material
- stainless steel, cast iron
- Voltage
- 380 V
- Protection level
- standard
- Other characteristics
- compact, small, high-performance, OEM
- Flow
Max.: 12.6 m³/h
(444.9648 ft³/h)Min.: 1.62 m³/h
(57.20976 ft³/h)- Pressure
Max.: 520 bar
(7,541.962 psi)Min.: 50 bar
(725.189 psi)- Power
Max.: 90 kW
(122.37 hp)Min.: 30 kW
(40.79 hp)- Fluid temperature
Max.: 180 °C
(356 °F)Min.: 0 °C
(32 °F)- Length
1,097 mm
(43 in)- Width
599 mm
(23.58 in)- Height
590 mm
(23.23 in)- Weight
342 kg
(753.98 lb)
Description
high pressure pumps are small in size and compact in structure; power ends adopt splash or forced lubrication with a stable and reliable transmission, reducing the friction coefficient and improving the lubricity; power
ends temperature rise are low, suitable for long time continuous operation; it can pump clear water, emulsion, and other chemical liquid similar with clear water.
