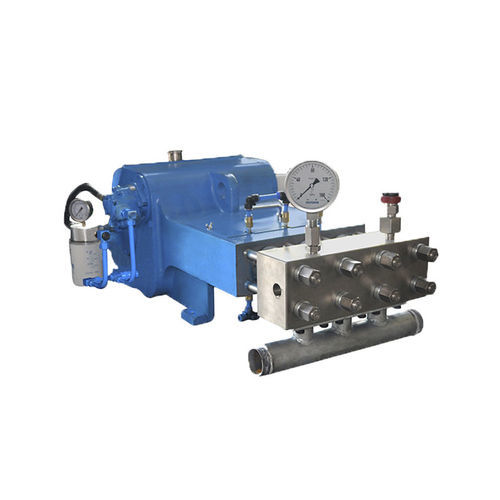

Plunger pump 3D2HP for chemicalselectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- for chemicals
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- cooling, circulation
- Other characteristics
- modular
- Flow
Min.: 1.74 m³/h
(61.44752 ft³/h)Max.: 3.42 m³/h
(120.77616 ft³/h)- Pressure
Min.: 33 MPa
Max.: 150 MPa
- Length
1,007 mm
(39.646 in)- Width
400 mm
(15.75 in)- Height
532 mm
(20.94 in)- Weight
350 kg
(771.62 lb)
Description
high pressure pumps are new high pressure pumps developed by our company. Based on the mature power end of 3D2 pump, the input power is 9OkW, matching the new liquid end with working pressure 15OObar. Cylinder adopts independent circulation cooling technology that optimizes the plunger sealing working environment, modular inlet &outlet valve
