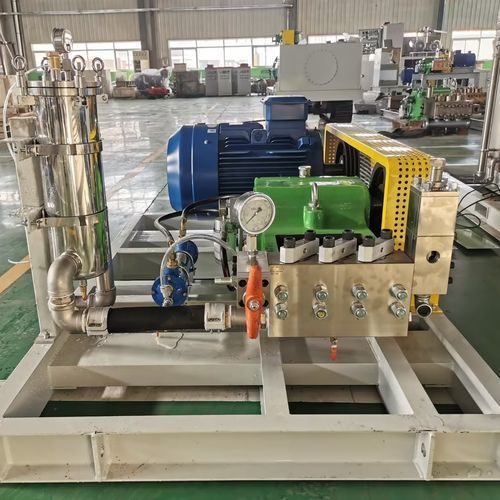

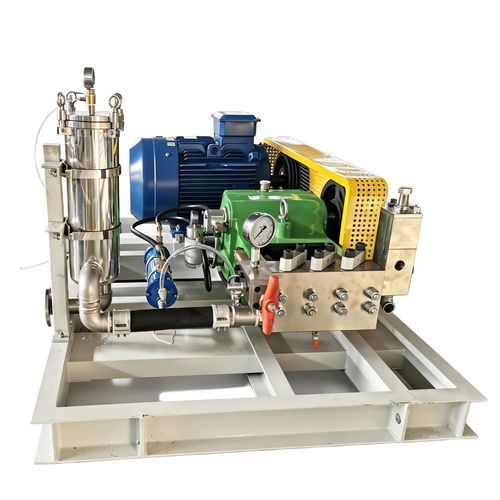

Plunger pumping unit 3D3Q-SZ waterfor chemicalselectric
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water, for chemicals
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for the automotive industry, for the pharmaceutical industry, for marine applications, chemical
- Applications
- high-pressure, transfer, for industrial applications, cleaning, for lubrication systems, descaling
- Material
- stainless steel, metal
- Fluid specification
- for low-viscosity fluids
- Voltage
- 380 V, 400 V
- Protection level
- standard
- Other characteristics
- compact, low-noise, OEM, high-efficiency
- Flow
Max.: 6.3 m³/h
(222.4824 ft³/h)Min.: 3 m³/h
(105.944 ft³/h)- Pressure
Max.: 100 MPa
Min.: 45 MPa
- Fluid temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Length
Max.: 160 cm
(63 in)Min.: 80 cm
(31 in)- Width
Max.: 150 cm
(59.06 in)Min.: 130 cm
(51.18 in)- Height
Max.: 60 cm
(23.62 in)Min.: 50 cm
(19.69 in)- Weight
Max.: 1,500 kg
(3,306.93 lb)Min.: 800 kg
(1,763.7 lb)
Description
high-pressure pump is an ultra-high pressure plunger pump that absorbs and borrows the technical characteristics of imported products, adopts finite element careful checking, the pressure is up to 160MPa, and the flow rate is the moderate flow rate required by the high-pressure water jet 40L/min~93L/min. It is suitable for ultra-high pressure water jet cleaning, metal cutting, ship cleaning and rust removal, and descaling and cleaning of condensers, heat exchangers, evaporation tanks, boilers and various tanks in chemical plants, sugar factories, power plants, etc. It can pump clean water, emulsion, and other liquids with chemical similar properties.
