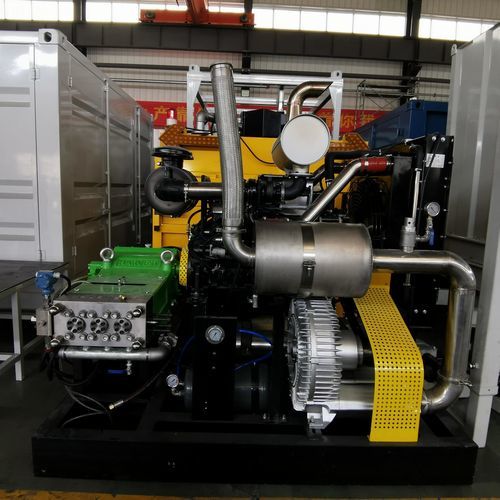

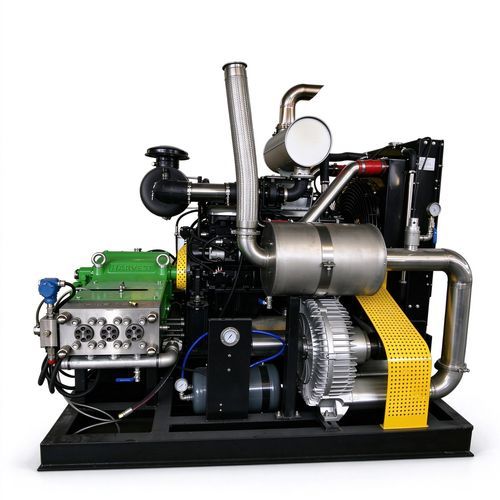

Plunger pumping unit HW132D-SZfuelwaterfor chemicals
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water, for chemicals, fuel
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for marine applications
- Applications
- high-pressure, transfer, for industrial applications, cleaning, lubrication, ultra high-pressure
- Material
- metal
- Fluid specification
- for low-viscosity fluids
- Protection level
- standard
- Other characteristics
- compact, low-noise, OEM, high-performance, modular
- Flow
Min.: 2 m³/h
(70.62933 ft³/h)Max.: 4.1 m³/h
(144.79013 ft³/h)- Pressure
Min.: 55 MPa
Max.: 185 MPa
- Power
Min.: 55 kW
(74.78 hp)Max.: 132 kW
(179.47 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)- Length
Min.: 700 mm
(27.559 in)Max.: 1,400 mm
(55.118 in)1,262 mm
(49.685 in)- Width
Min.: 1,200 mm
(47.24 in)Max.: 1,600 mm
(62.99 in)730 mm
(28.74 in)- Height
Min.: 600 mm
(23.62 in)Max.: 900 mm
(35.43 in)547 mm
(21.54 in)- Weight
Min.: 500 kg
(1,102.31 lb)Max.: 1,500 kg
(3,306.93 lb)
Description
high pressure plunger pump is a new product which is independently developed by our r&d staff and has completely independent intellectual property rights. The power end matches three speed ratios suitable for different working conditions, and the new forced lubrication structure guarantees the reliability of contact operation. The hydraulic end adopts the modular design concept, convenient to use and maintain. Wear parts life not less than 1400 hours.
The pump type is especially suitable for road line marking and line dividing, power plant heat exchanger, condenser and other fields of high pressure water jet cleaning requirements.
