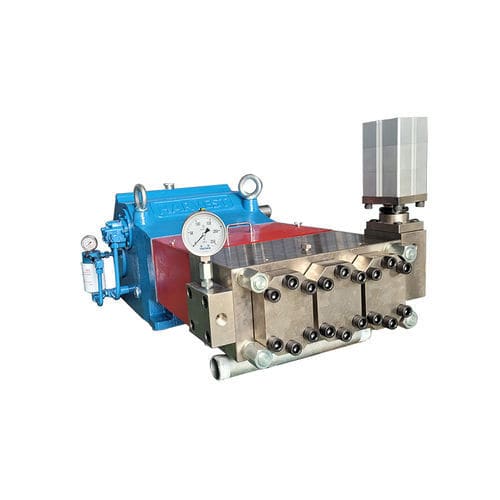

Plunger pump HW200A-SZ
waterelectricself-priming

Plunger pump - HW200A-SZ - Tinajin Harvest - water / electric / self-priming
Plunger pump - HW200A-SZ - Tinajin Harvest - water / electric / self-priming
Plunger pump - HW200A-SZ - Tinajin Harvest - water / electric / self-priming - image - 2
Plunger pump - HW200A-SZ - Tinajin Harvest - water / electric / self-priming - image - 3
Plunger pump - HW200A-SZ - Tinajin Harvest - water / electric / self-priming - image - 4
Plunger pump - HW200A-SZ - Tinajin Harvest - water / electric / self-priming - image - 5
Add to favorites
Compare this product
Go to the Tinajin Harvest website for more information

Characteristics

Technology
plunger
Fluid
water
Operation
electric
Priming
self-priming
Mobility
stationary
Domain
industrial, chemical
Applications
high-pressure, cleaning, descaling
Material
metal
Other characteristics
flow
Flow

Min.: 1.98 m³/h
(69.92304 ft³/h)

Max.: 5.58 m³/h
(197.05584 ft³/h)

Pressure

Min.: 70 MPa

Max.: 160 MPa

Description

high-pressure pump piston pump is an ultra-high pressure plunger pump that absorbs and draws on the technical characteristics of imported products, adopts finite element carefully checked, the pressure is up to 160MPa, and the flow rate is the moderate flow rate required by high-pressure water jet 33L/min-10L/min, suitable for ultra-high pressure water jet cleaning, metal cutting, ship rust removal and descaling cleaning of condensers, heat exchangers, evaporation tanks, boilers and other types of kettles in chemical plants, sugar factories, power plants, etc. It can pump clean water, emulsion and other fluids with chemical properties similar to clean water.
