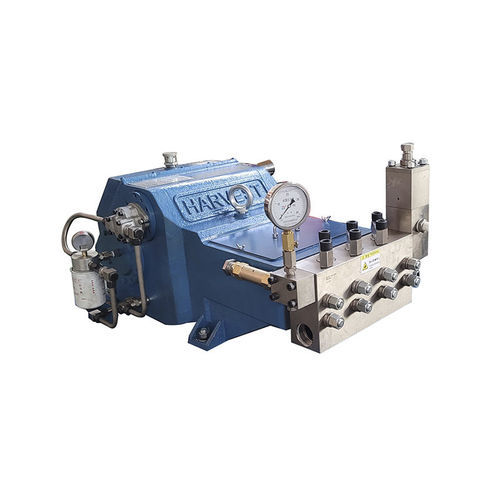

Plunger pump 3D2Aoilelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- oil
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- lubrication
- Flow
Min.: 1.5 m³/h
(52.972 ft³/h)Max.: 11.7 m³/h
(413.1816 ft³/h)- Pressure
Min.: 8 MPa
Max.: 80 MPa
- Power
Min.: 30 kW
(40.79 hp)Max.: 90 kW
(122.37 hp)- Length
1,310 mm
(52 in)- Width
792 mm
(31.18 in)- Height
630 mm
(24.8 in)- Weight
586 kg
(1,291.91 lb)
Description
high pressure pumps are improved on the basis of the pump 3D2-S. The characteristics are as follow: The volume of lubrication oil in crankcase increases which improves lubricity and oil temperature rise is low; The crankshaft diameter increases so that increases the strength of crankshaft and the transmission power is bigger, the output pressure of the pump is bigger, thus the application scope is wider;
