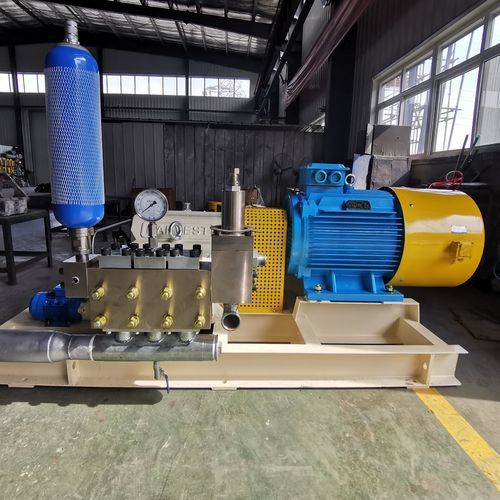

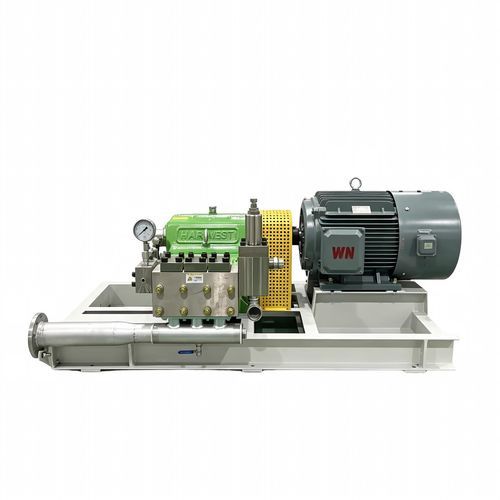

Cold water high-pressure washer 3D2C-SZ
diesel engine

Cold water high-pressure washer - 3D2C-SZ - Tinajin Harvest - diesel engine
Cold water high-pressure washer - 3D2C-SZ - Tinajin Harvest - diesel engine
Cold water high-pressure washer - 3D2C-SZ - Tinajin Harvest - diesel engine - image - 2
Cold water high-pressure washer - 3D2C-SZ - Tinajin Harvest - diesel engine - image - 3
Cold water high-pressure washer - 3D2C-SZ - Tinajin Harvest - diesel engine - image - 4
Cold water high-pressure washer - 3D2C-SZ - Tinajin Harvest - diesel engine - image - 5
Cold water high-pressure washer - 3D2C-SZ - Tinajin Harvest - diesel engine - image - 6
Add to favorites
Compare this product
Go to the Tinajin Harvest website for more information

Characteristics

Type
cold water
Power source
diesel engine
Pressure

Max.: 240 bar
(3,480.91 psi)

Min.: 40 bar
(580.15 psi)

Water output

Max.: 31 m³/h
(1,094.75 ft³/h)

Min.: 14 m³/h
(494.41 ft³/h)

Pipe length

Max.: 10 m
(32'09" )

Min.: 1 m
(3'03" )

Sound level

Max.: 80 dB

Min.: 50 dB

Lengh

Max.: 800 mm
(31 in)

Min.: 700 mm
(28 in)

Width

Max.: 1,400 mm
(55.12 in)

Min.: 1,000 mm
(39.37 in)

Height

Max.: 800 mm
(31 in)

Min.: 600 mm
(24 in)

Weight

Max.: 1,000 kg
(2,204.62 lb)

Min.: 630 kg
(1,388.91 lb)

Description

high-pressure pump is an improved product of 3D2A-S high-pressure pump. The power can reach 110kw, and the flow rate can reach 415L/min large flow piston pump. It is suitable for metallurgical phosphorus removal, secondary oil recovery in oilfield, water injection for tertiary oil recovery, injection agent, ground power source of water conservancy piston pump and other industrial applications that require large flow. It can pump clean water, emulsion, and other liquids with chemical properties similar to clean water.
