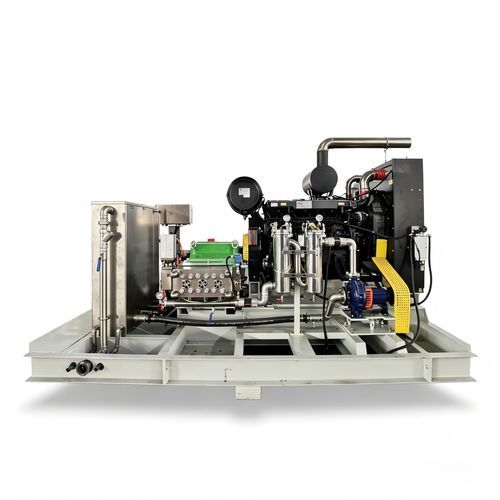

Plunger pump HW250HFZwaterfor chemicalselectric
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water, for chemicals
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, for water treatment, for the petrochemical industry, for the mining industry, for the metallurgical industry, for maritime applications, for deep well
- Applications
- transfer, high-pressure, cleaning, drain, washing, for industrial applications, dredging, descaling, test, for tube and pipe cleaning
- Material
- stainless steel, cast iron, steel
- Fluid specification
- for low-viscosity fluids
- Voltage
- 380-415V
- Protection level
- standard, wear-resistant, IP55
- Other characteristics
- large, flow, vertical
- Flow
Min.: 6.96 m³/h
(245.79008 ft³/h)Max.: 19.08 m³/h
(673.80384 ft³/h)- Pressure
Min.: 18 MPa
Max.: 70 MPa
- Power
Min.: 90 kW
(122.37 hp)Max.: 255 kW
(346.7 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 180 °C
(356 °F)- Length
1,370 mm
(54 in)- Width
912 mm
(35.91 in)- Height
748 mm
(29.45 in)
Description
The overall independent research and development, medium and low pressure and large flow, plunger stroke
valve group vertical conical structure, power end matching multi-speed ratio, large crankshaft thrust, wide range of applications
