Water jet cleaning machine

manualhigh-pressurevertical

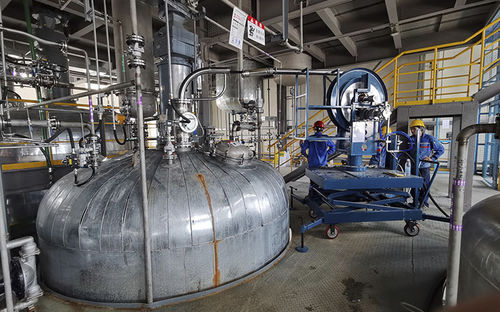

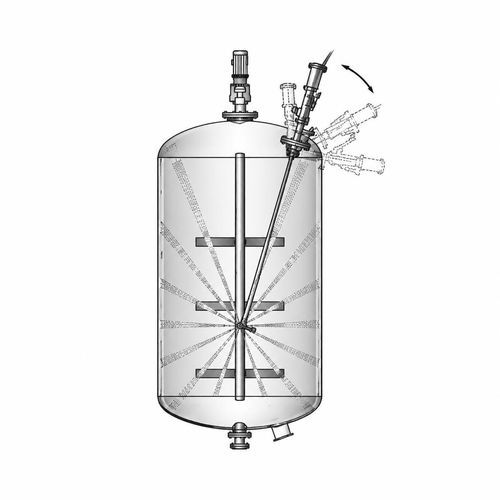

The high-pressure cleaning equipment of the polymerization kettle utilizes the kinetic energy of high-pressure water jet to break down, peel off and remove the hard scale on the inner wall of the reaction vessel and the surface of the mixer. (1) Telescopic arm positioning mechanism: ① Vertical feed. According to different polymerization kettle size specifications, different positioning mechanisms can be selected to achieve different vertical feed depths. The vertical feed movement can stop the nozzle at any height position for cleaning operations. ② Tilt (pitch). A rotating fulcrum is set between the positioning rod and the base, which can tilt a certain angle relative to the axis of the polymerization kettle, with a maximum tilt of 45 °, to ensure that the nozzle is close to the inner wall of the polymerization kettle. ③ Rotate. The entire positioning mechanism can rotate relative to the inner wall of the polymerization kettle, with a rotation angle of up to 150 ° The manual positioning and telescopic mechanism of the three-dimensional rotating nozzle is installed on the reaction chamber manhole, and the telescopic rod extends into the reaction chamber, which can extend the cleaning head to the cleaned surface, shorten the target distance, and provide cleaning effect. The telescopic rod can avoid obstacles within the reaction zone during movement. The three-dimensional rotating nozzle is installed at the front end of the telescopic rod.
