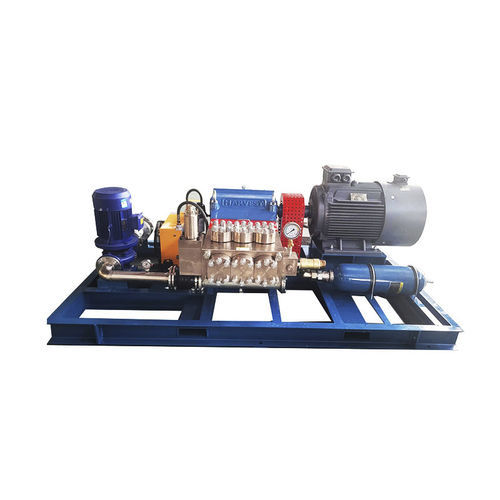

Piston pump K20000-SZ wateroilelectric
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- water, oil
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- discharge, high-pressure, injection, recovery
- Other characteristics
- large, flow, with valve
- Flow
Max.: 37.2 m³/h
(1,313.7056 ft³/h)Min.: 9.3 m³/h
(328.4264 ft³/h)- Pressure
Max.: 35 MPa
Min.: 8 MPa
- Power
Max.: 200 kW
(271.92 hp)Min.: 110 kW
(149.56 hp)- Length
1,448 mm
(57 in)- Width
800 mm
(31.5 in)- Height
600 mm
(23.62 in)- Weight
980 kg
(2,160.53 lb)
Description
high-pressure pump is a large-flow plunger pump that absorbs and borrows the technical characteristics of imported products and adopts finite element carefully checked. The hydraulic end can be optionally equipped with valve disc structure inlet and discharge valve group or conical valve structure inlet and discharge valve group to meet the requirements of different working conditions. The maximum power is 200kW.
It is suitable for metallurgical phosphorus removal, secondary oil recovery in oilfield, tertiary oil production water injection, injection agent, ground power source of water conservancy piston pump and other industrial applications that require large flow. It can pump clean water, emulsion, and other liquids with chemical similar properties.
