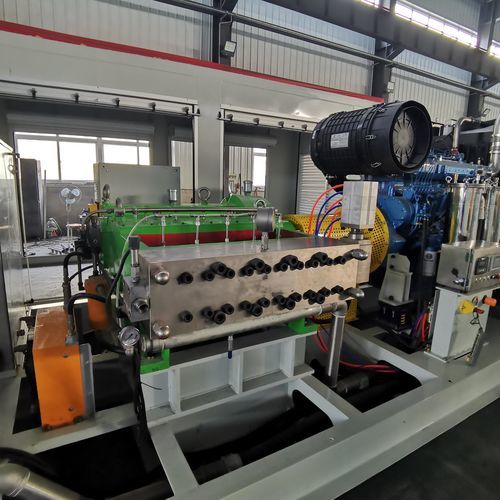

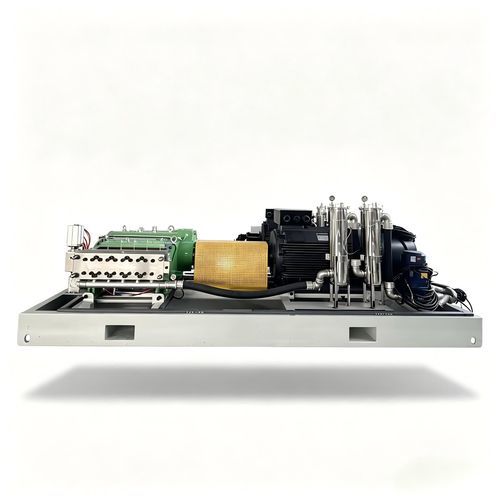

Plunger pump HW500 waterfor chemicalsfor lubricants
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water, for chemicals, for lubricants
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, chemical, for water treatment, for the petrochemical industry, for the mining industry, for the metallurgical industry, for marine applications, for the construction industry, for tires
- Applications
- cleaning, transfer, high-pressure, drain, washing, descaling, for high-pressure applications, for cleaners, for tube and pipe cleaning, for water-jet cleaning, high-pressure cleaning
- Material
- stainless steel
- Fluid specification
- for low-viscosity fluids
- Voltage
- 380 V, 400 V, 24 V
- Protection level
- standard
- Other characteristics
- compact, high-performance, large, flow, custom
- Flow
Min.: 8.9 m³/h
(314.30053 ft³/h)Max.: 48.7 m³/h
(1,719.82427 ft³/h)- Pressure
Min.: 20 MPa
Max.: 130 MPa
- Power
Min.: 355 kW
(482.67 hp)Max.: 550 kW
(747.79 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)- Length
1,475 mm
(58 in)Min.: 1,500 mm
(59 in)Max.: 3,000 mm
(118 in)- Width
1,364 mm
(53.7 in)Min.: 1,000 mm
(39.37 in)Max.: 1,500 mm
(59.06 in)- Height
855 mm
(33.66 in)Min.: 1,000 mm
(39.37 in)Max.: 2,000 mm
(78.74 in)- Weight
Min.: 3,500 kg
(7,716.18 lb)Max.: 8,000 kg
(17,636.98 lb)
Description
Compact structure, large flow, high pressure, safe and reliable, low noise, small pulse, can run for a long time, easy to replace wearing parts labor saving, high efficiency, power end internal friction coefficient small transmission stable and reliable, can match a variety of hydraulic end structure, wide application range, easy maintenance.
Application industries: construction, shipbuilding, chemical industry, manufacturing, petroleum, food, electric power, pipeline, surface cleaning, coal mine, etc.
