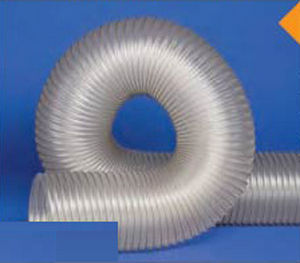

Abrasion resistant PU suction and transport hoses with immovable cast spring steel spiral, DN 16 - DN 500.
Available in lightweight up to heavy qualities.
Hose wall from 0,7 mm up to 4,8 mm.
Temperature range: -40 °C up to +90 °C, intermittent up to +125 °C.
Applications:
suction and transport hoses for extremely abrasive materials, gaseous and liquid media, oil spray extraction, protection hose against mechanical pressure.
Properties:
- extremely abrasion resistant
- resistant to oils and fuels
- gas tight
- good chemical resistance
- free of plastizisers and halogen
- generally good UV and ozone resistance
- very flexiblel, reduced weight
- small bend radius
- nearly smooth inside
- optimum flow characteristics
- electrically conductive to BGR 132 by grounding spiral
Recommended connecting elements:
hose clamps, hose reducers, hose connectors
Combiflex connecting system:
PU cuffs, PU DIN flange, quick action cone flange system, PU threaded socket
Hoses are also available in the following qualities:
- hardly inflammable and crush resistant
- microbe and hydrolysis proof
- food quality (FDA)
- antistatic and electrically conductive
|
|
|
|
|
|

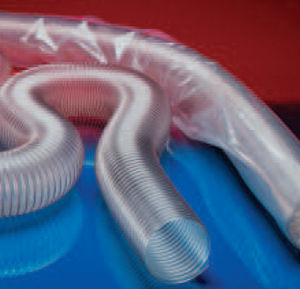

Maximum abrasion resistance, less wear and tear
Inline hose with 5.5 times service life
Masterflex AG has developed a unique process for producing hoses which are seamlessly smooth on the inside, thus achieving hose qualities with a previously unknown smoothness. “The Master polyurethane inline hoses offer the unique combination of maximum abrasion resistance with enormous wall thicknesses, low weight and amazing bending radii”, explains Detlef Herzog, Managing Director of Masterflex AG. “And so they are a real competitor to the heavy rubber hose.”
The patented process combines the advantages of the extruded hose with the special characteristics of the materials with which the hose’s smoothness is achieved. During manufacture, the hose is furnished with different hi-tech components. In the case of conventional hoses, the construction-induced weld seam is a major weak spot because the corrosion of the material to be conveyed takes place on the edges of the seam. By cleverly combining the materials, the hose is suitable for all manner of fields of application, specially for the transport of abrasive and corrosive media. Test results have shown that under comparable conditions the inline hose will last at least 5.5 times longer than the best rubber hose tested in the company’s laboratory using the procedure according to DIN 53516.
|
|
|
|
|
|
Compared with many other plastic hoses, NORRES polyurethane hoses (PUR) (AIRDUC, NORFLEX, NORPLAST, PROTAPE and TIMBERDUC) have the following distinguishing characteristics depending on type:
- less wear (about 2.5 to 5 times better than rubber and about 3 to 4 times better than many soft PVC), better service life in pumping processes
- light and flexible
- it is possible to observe the pumping and transport process with transparent and partially-coloured hoses
- excellent mechanical strength
- good chemical resistance
- good resistance to UV and weathering
Applications
Universal and abrasion-proof suction, transport and blast hoses, especially suitable (light to super heavy hoses):
- for abrasive solids such as dust, powder, fibres, chips, granulates
- for gaseous and liquid media
- for de-dusting and suction plants, industrial vacuum cleaners, suction of paper and textile fibres, granulate conveying systems, printing machines, blowers and compressors
- for roof gravel conveying, silo loading
- as conveying and head hose for suction vehicles, as conveying hose in glassworks, steel works
- as resistant protections hose
Temperature Range
-40 °C approx. up to +90 °C (short time to +125 °C approx.)
Wall thickness:
0.4 - 6.0 mm
|
|
NORRES flame retardant polyurethane hose for he wood industry: TIMBERDUC®
TIMBERDUC® hoses were special developed and optimised for the removal of wood dust and chips.
Applications
Special suction and blast hose in flame-retardant polyurethane and wood preservatives, especially suitable (in different types):
- for the suction of wood dust and wood chips on wood processing machines
- for abrasive solids like dust, powder, fibres and chips
- for de-dusting and suction plants
- for CNC machines
- as robust protection hose
Properties
- conforms to the safety regulations of the German Wood Trade Association
- flame-retardant according to: UL94-HB, DIN 4102-B1
- capable of electro-static discharge (according to BGR 132, formerly ZH 1/200) by grounding the spiral
Temperature Range
-40 °C approx. to +90 °C approx. (short time to +125 °C approx.)
Wall thickness
0.4 – 1.5 mm
|
|
|
|
|
|
PROTAPE® PUR 327 MEMORY
Special hose withstands frequent crushing. Its innovative design and the special properties of the raw materials make it ideal for long-term use in the open, no matter how abrasive the media conveyed.
Applications:
Abrasion-proof suction and transport hose, especially suitable:
- for public utility street cleaning vehicles
- for lawnmowers, grass sweeping machines and leaves exhaust
- for abrasive solids such as dust, powder, fibres, chips and granulates
- for gaseous and liquid media
- for feed transport
Properties:
- vibration resistant
- crush-proof
- highly abrasion-proof
- flexible
- optimized flow properties
- high tensile strength and tear resistant
- microbe and hydrolysis resistant
- good resistance to mineral oils
- good resistance to chemicals
- good resistance to UV and ozone
- very good low temperature flexibility
- small bending radius
- softener and halogen free
- gas and liquid tight
Material:
- wall: special premium ether-polyurethane
- spiral: special hollow plastic helix
Wall Thickness: 0.9 mm approx.
Temperature Range:
- 40 °C approx. to + 90 °C (short time to 125 °C approx.)
|
|
|
|
|
|
Hoses made of HT-PUR are much more resistance to heat- up to a constant temperature of 125 °C, even short-term to 150 °C.
Applications
Universal and abrasion-proof suction and transport hose, especially suitable (light to heavy hoses):
- for abrasive solids solids such as dust, powder, chips, granulates and for high flow-rates extremely abrasive solids such as sand, gravel, refuse glass
- for gaseous and liquid media
for printing machines, blowers and compressors, for industrial vacuum cleaners, granulate conveying systems, for silo vehicles as conveying hose in glassworks, docks, steel works, stone pits, shipyards, cement works etc.
Properties
-very good heat resistance (better than comparable TPE and neoprene)
-highly abrasion-proof
- smooth interior
- optimized flow properties
- high tensile strength and tear resistance
- good resistance to mineral oils
- good resistance to chemicals
- good resistance to UV and ozone
-softener and halogen free
- gas and liquid tight
- capable of electro-static discharge by grounding the spiral
Material
- wall: special premium high-temperature-polyurethane (HT-PUR and Pre-PUR)
- spiral: spring steel wire
Temperature Range
-40 °C up to 125 °C (short time to +150 °C approx.)
|
|
|
|
|
|
AIRDUC® PUR 350 MHF
Applications:
Universal and abrasion-proof suction and transport hose, especially suitable:
- for abrasive solids such as dust, powder, fibres and chips
- for gaseous media such as oil vapors and welding smoke
- for de-dusting and suction plants
Properties:
- super-light model
- highly abrasion-proof
- smooth interior
- flexible
- optimized flow properties
- high tensile strength and tear resistant
- food quality wall complies with: FDA 21 CFR 177.2600 + 178.2010, EC guideline 2002/72/EC
- approval according to EC guideline 2002/72/EC for the complete hose by independent institute
- microbe and hydrolysis resistant
- good resistance to mineral oils
- good resistance to chemicals
- good resistance to UV and ozone
- very good low temperature flexibility
- small bending radius
- softener and halogen free
- gas and liquid tight
- capable of electro-static discharge according to BGR 132
Material:
- wall: special premium ether-polyurethane
- spiral: spring steel wire
Wall Thickness: 0.7 mm approx.
Temperature Range:
- –40 °C approx. To + 90 °C (short time to 125 °C approx.)
|
|
|
|
|
|
Microbe and hydrolysis resistant of NORRES (AIRDUC, CP, NORFLEX and PROTAPE) consist in high quality ether-polyurethane and have the following characteristics:
- resistant to microbes (the chemical structure of ether-polyurethanes gives the materials permanent resistance to microbial attack)
- resistant to hydrolysis (this is critical for wet applications, at higher temperatures and for use in tropical climates)
- better chemical stability than comparable ester-polyurethanes
- better flexibility at low temperatures than comparable ester-polyurethanes
Applications
Abrasion-proof suction, transport and blast hoses, especially suitable (super light to super heavy hoses):
- for abrasive solids such as dust, powder, fibres, chips, granulates, sand, gravel, grain, refuse glass
- for gaseous and liquid media
- for public utility street cleaning vehicles
- for lawnmowers, grass sweeping machines and leaves exhaust
- for feed transport
Some properties of the Microbe and Hydrolysis resistant polyurethane hoses
- microbe and hydrolysis resistant
- highly abrasion-proof
- good resistance to mineral oils
- good resistance to chemicals
- good resistance to UV and ozone
- softener and halogen free
- capable of electro-static discharge (according to BGR 132) grounding the spiral
Temperature Range
-40 °C approx. up to +90 °C (short time to +125 °C approx.)
Connecting parts:
Microbe and hydrolysis resistant connecting parts
|
|
Reinforced Polyurethane Hose
* Two layers of 100% ether polyurethane reinforced with a 1000 Denier high tenacity polyester yarn
* Stock sizes from 6.3mm to 25mm ID
* Suitable for Food Use
* Shore A 90
* Silicone & Cadmium Free
* Hydrolysis Resistant
* Plasticiser Free
Unreinforced Polyurethane Tube
* 100% ether polyurethane
* Stock sizes from 3mm to 13mm ID
* Suitable for Food Use
* Shore A 90
* Silicone & Cadmium Free
* Hydrolysis Resistant
* Plasticiser Free
|
|
Especially designed for PU application (Polyurethan-glue). The changeable glue core enables a fast and inexpensive reconnection.
The hoses are very flexible and have an external diameter of 50mm and inner diameter of 7-13mm. They are constructed to work at temperatures up to 200°C and are pressure resistant up to 200bar.
|
|
|

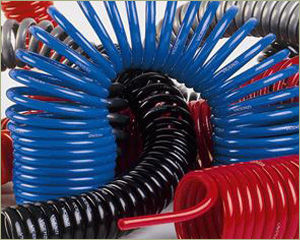

Although 95A Durometer is the hardest compound used for Polyurethane tubing, it is still more flexible and has a smaller bend radius (without kinking) than most other plastic tubing. Production from an ether-based (polytetra-methylene glycol ether) raw material assures resistance to moisture, fungus, abrasion and a broad range of chemicals making it a popular choice for many applications. A wide selection of colors makes it adaptable to the functional and aesthetic requirements of most pneumatic circuits and equipment.
|
|
