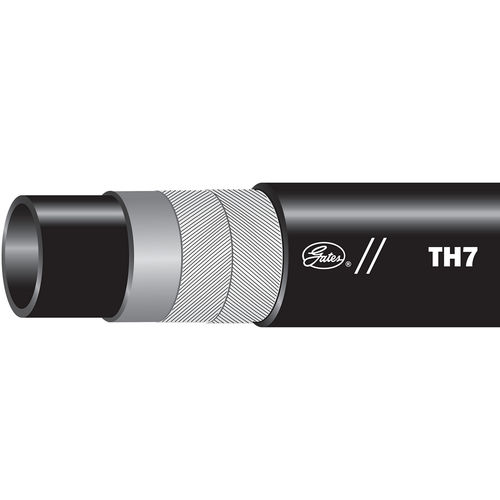

Hydraulic hose TH7PUthermoplasticPA
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Use
- hydraulic
- Material
- PU, thermoplastic, PA
- Applications
- high-pressure, for hydraulic systems
- Inner diameter
4.8 mm, 19.1 mm, 25.4 mm
(0.189 in, 0.752 in, 1 in)- Outer diameter
10.4 mm, 26.7 mm, 33.5 mm
(0.409 in, 1.051 in, 1.319 in)- Pressure
70 bar, 87.1 bar, 207 bar
(1,015.264 psi, 1,263.279 psi, 3,002.281 psi)- Temperature
Max.: 93 °C
(199.4 °F)Min.: -54 °C
(-65.2 °F)- Delivered length
61 m, 76 m
(200'01" , 249'04" )
Description
High pressure hydraulic applications, especially material handling equipment with mast and pulley systems like forklifts, aerial lifting, hydraulic boom cranes and many others.
Cover: Black TH7 is perforated for use in general hydraulic and pneumatic service.
The complete range is also available in a non-conductive version.
Exceeds ISO 3949 R7. EN 855 R7. SAE 100R7.
Validated with MegaCrimp®.
Size: 1/4" to 1".
