Biodegradable fluid hose M6K
NBRsyntheticPVC

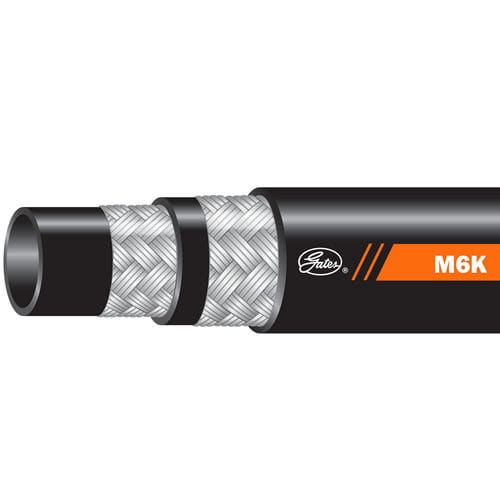

Biodegradable fluid hose - M6K - Gates - NBR / synthetic / PVC
Biodegradable fluid hose - M6K - Gates - NBR / synthetic / PVC
Biodegradable fluid hose - M6K - Gates - NBR / synthetic / PVC - image - 2
Biodegradable fluid hose - M6K - Gates - NBR / synthetic / PVC - image - 3
Add to favorites
Compare this product

Go to the Gates website for more information

Characteristics

Use
for biodegradable fluids
Material
NBR, synthetic, PVC
Applications
high-pressure, for hydraulic systems
Other characteristics
flexible, lightweight, standard, fire-resistant, wire-braided
Inner diameter

6.4 mm
(0.252 in)

Outer diameter

14.7 mm
(0.579 in)

Pressure

420 bar
(6,091.585 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 100 °C
(212 °F)

Delivered length

175 m
(574'01" )

Description

Recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings, Stainless Steel B Couplings. M6K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids. Superior flex impulse performance: Tested to 600,000 impulse cycles, 3 times the industry standard. Meets Flame Resistance Acceptance Designation MSHA 2G. Features and Benefits Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing. 70% of EN 857 2SC and 50% of EN 853 2SN bend radius at rated working pressure. Type approvals: DNV, GL, LR and BV. Standards: Gates proprietary. Validated with MegaCrimp™. Cover: MSHA approved.
