Biodegradable fluid hose G2H
NBRCSMsynthetic

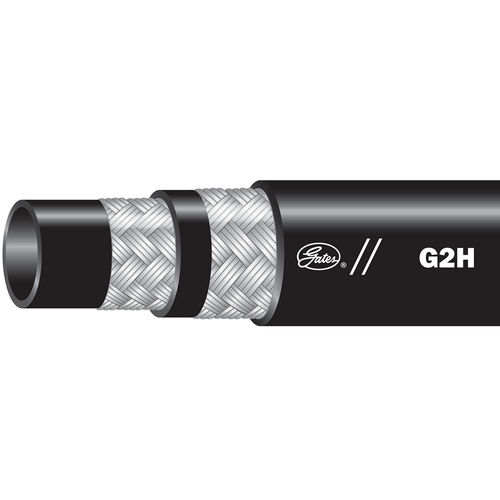

Biodegradable fluid hose - G2H - Gates - NBR / CSM / synthetic
Biodegradable fluid hose - G2H - Gates - NBR / CSM / synthetic
Biodegradable fluid hose - G2H - Gates - NBR / CSM / synthetic - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Gates website for more information

Characteristics

Use
for biodegradable fluids
Material
NBR, CSM, synthetic
Applications
high-pressure, high-temperature, for hydraulic systems
Other characteristics
standard, fire-resistant, wire-braided
Inner diameter

31.8 mm, 38.1 mm, 50.8 mm
(1.252 in, 1.5 in, 2 in)

Outer diameter

47.2 mm, 53.6 mm, 66.5 mm
(1.858 in, 2.11 in, 2.618 in)

Pressure

80 bar, 90 bar, 125 bar
(1,160.302 psi, 1,305.34 psi, 1,812.972 psi)

Temperature

Max.: 149 °C
(300.2 °F)

Min.: -40 °C
(-40 °F)

Delivered length

37 m
(121'04" )

Description

Recommended for high-temperature, high-pressure hydraulic oil line applications such as engine compartments, foundries, etc. Meets or exceeds the requirements of SAE 100R2, ISO1436 2SN R2 and EN 853 2SN. Couplings: Field Attachable Type T Couplings (-20 and -24), GlobalSpiral™ Couplings (-20), GlobalSpiral™ Plus Couplings (-24 and -32), MegaCrimp® Couplings (-20), Stainless Steel B Couplings. G2H hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids and phosphate esters. Superior flex impulse performance: Tested to 600,000 impulse cycles, 3 times the industry standard. FEATURES AND BENEFITS -20 validated with MegaCrimp™; -24 to -32 with GlobalSpiral™ Plus. Meets Flame Resistance Acceptance Designation MSHA 2G. Cover: Black. MSHA approved.
