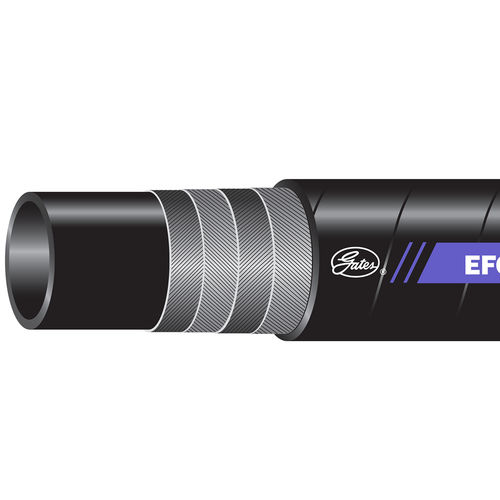

Recommended for extremely high pressure and high impulse hydraulic applications. EFG4K exceeds requirements for ISO 18752 Grade D, SAE 100R12, EN 856 R12 and ISO 3862 Type R12. Recommended Couplings: GlobalSpiral™ Couplings (-6 through -20) Special One-Piece 20MGS Coupling (MC4-20 Crimper Only) (-20), Stainless Steel S Couplings.
Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii.
FEATURES AND BENEFITS
Meets or exceeds performance requirements of EN 856 4SP (-16, -20).
EFG4K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R12.
Most flexible EN 856 R12 / SAE 100R12 hose in the industry.
40% of EN 856 4SP bend radius at rated working pressure.
Type approvals: DNV, GL, LR, BV and ABS.
Validated with GlobalSpiral™.
Cover: MSHA approved.
