Oil hose GTH
CRhigh-temperatureheavy-duty

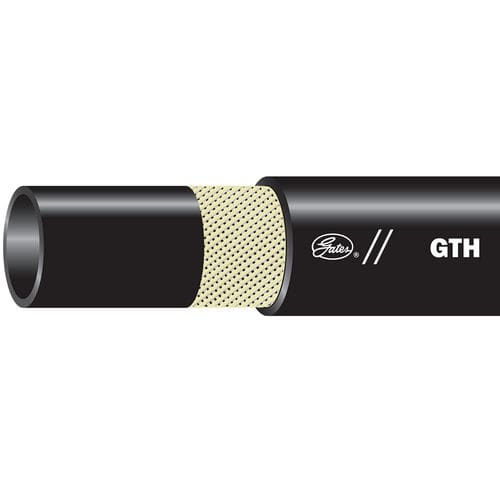

Oil hose - GTH - Gates - CR / high-temperature / heavy-duty
Oil hose - GTH - Gates - CR / high-temperature / heavy-duty
Oil hose - GTH - Gates - CR / high-temperature / heavy-duty - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Gates website for more information

Characteristics

Use
for oil
Material
CR
Applications
high-temperature, heavy-duty, for hydraulic systems
Other characteristics
anti-freeze, wire-braided
Inner diameter

Min.: 6.4 mm
(0.252 in)

Max.: 25.4 mm
(1 in)

Outer diameter

Min.: 12.7 mm
(0.5 in)

Max.: 33.5 mm
(1.319 in)

Pressure

Min.: 84 bar
(1,218.317 psi)

Max.: 112 bar
(1,624.423 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 149 °C
(300.2 °F)

Delivered length

Min.: 50.3 m
(165'00" )

Max.: 236.2 m
(774'11" )

Description

Recommended for high-temperature, low pressure hydraulic oil lines, heavy-duty transmission oil cooler lines and glycol anti-freeze solutions. Specially resistant to diesel permeation. For water emulsions see Temperature Limits Table. Recommended Couplings: GLP Couplings (-4, -8, -12) MegaCrimp® Couplings (-8 to -12), Power Crimp® (-3), PCK (-5 to -10 and -16), GB (-4 and -8 to -10). Meets or exceeds requirements of ISO 4079 R6 / EN 854 R6 / SAE 100R6.

Catalogs

No catalogs are available for this product.

See all of Gates‘s catalogs
Go to the Gates website for more information
