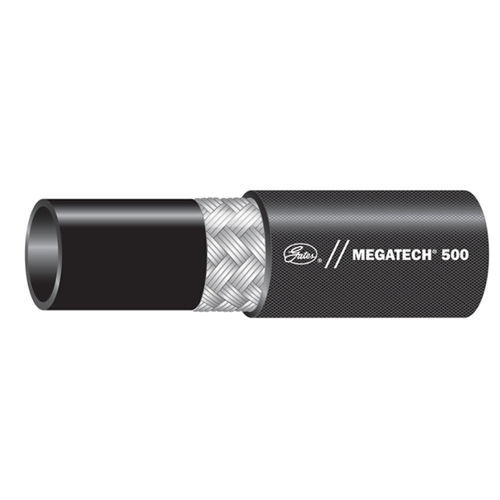

Hot oil hose MEGATECH® 500
elastomerhigh-pressurehigh-temperature

Hot oil hose - MEGATECH® 500 - Gates - elastomer / high-pressure / high-temperature
Hot oil hose - MEGATECH® 500 - Gates - elastomer / high-pressure / high-temperature
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Gates website for more information

Characteristics

Use
for hot oil
Material
elastomer
Applications
high-pressure, high-temperature, for compressors
Other characteristics
weather-resistant, high-resistance
Inner diameter

38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm
(1.5 in, 2 in, 2.5 in, 3 in)

Outer diameter

49.5 mm, 63 mm, 75.4 mm, 89 mm
(1.949 in, 2.48 in, 2.969 in, 3.504 in)

Pressure

34 bar
(493.128 psi)

Temperature

Max.: 149 °C
(300.2 °F)

Min.: -40 °C
(-40 °F)

Delivered length

15 m, 30.5 m
(49'02" , 100'00" )

Description

Recommended for air brake hose, pressurized hot oil return lines and rotary oil/air compressor lines. Meets the requirements of SAE J1405 performance specifications for high-temperature transmission and lubricating oil systems using petroleum base oils. Not recommended for gasoline or diesel fuel applications. Recommended Couplings: GL Couplings, GlobalSpiral Plus Couplings (-24 and -32), Stainless Steel S Couplings (-24 and -32). -24 and -32 validated with GlobalSpiral Plus; -40 with GL. Very good resistance to weathering and ozone. For water emulsions see Temperature Limits Table.
