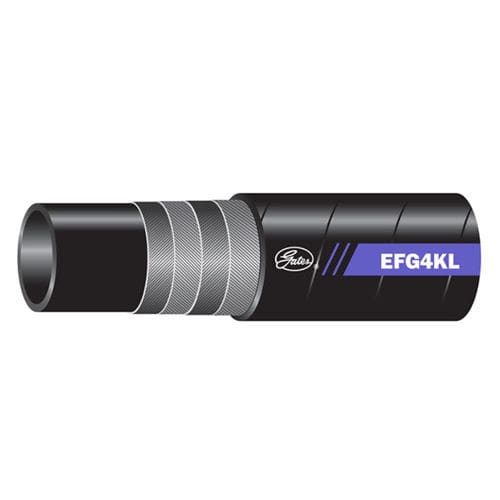

Biodegradable fluid hose EFG4KL
NBRCRhigh-pressure

Biodegradable fluid hose - EFG4KL - Gates - NBR / CR / high-pressure
Biodegradable fluid hose - EFG4KL - Gates - NBR / CR / high-pressure
Biodegradable fluid hose - EFG4KL - Gates - NBR / CR / high-pressure - image - 2
Biodegradable fluid hose - EFG4KL - Gates - NBR / CR / high-pressure - image - 3
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Gates website for more information

Characteristics

Use
for biodegradable fluids
Material
NBR, CR
Applications
high-pressure, low-temperature, for hydraulic systems
Other characteristics
flexible, standard, spiral wire
Inner diameter

9.5 mm, 12.7 mm, 19.1 mm, 25.4 mm, 31.8 mm
(0.374 in, 0.5 in, 0.752 in, 1 in, 1.252 in)

Outer diameter

20.6 mm, 24 mm, 30.7 mm, 37.8 mm, 47 mm
(0.811 in, 0.945 in, 1.209 in, 1.488 in, 1.85 in)

Pressure

280 bar
(4,061.057 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -57 °C
(-70.6 °F)

Delivered length

15 m, 30 m, 30.5 m
(49'02" , 98'05" , 100'00" )

Description

Recommended for very high-pressure, low temperature hydraulic applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum based fluid. Recommended Couplings: GlobalSpiral Couplings. Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R12 bend radii. FEATURES AND BENEFITS Standards: Meets or exceeds the requirements of ISO 3862 R12. SAE 100R12. Resistant to cover cracking at low temperature and tight bend radius. Meets or exceeds performance requirements of EN 856 4SP. 40% of EN 856 4SP bend radius at rated working pressure. Validated with GlobalSpiral. Cover: MSHA approved.
