Biodegradable fluid hose G2L
nitrileCRhigh-pressure

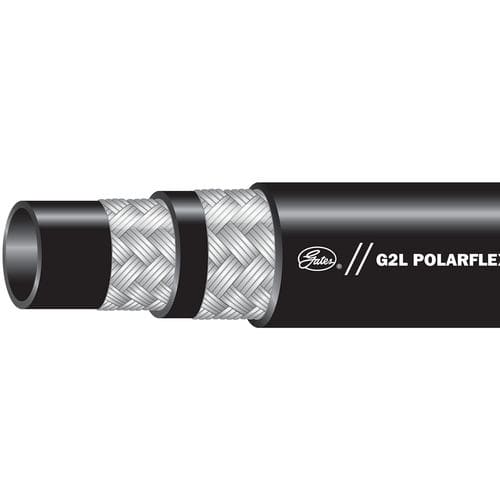

Biodegradable fluid hose - G2L - Gates - nitrile / CR / high-pressure
Biodegradable fluid hose - G2L - Gates - nitrile / CR / high-pressure
Biodegradable fluid hose - G2L - Gates - nitrile / CR / high-pressure - image - 2
Biodegradable fluid hose - G2L - Gates - nitrile / CR / high-pressure - image - 3
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Gates website for more information

Characteristics

Use
for biodegradable fluids
Material
nitrile, CR
Applications
high-pressure, low-temperature
Other characteristics
standard, fire-resistant, wire-braided
Inner diameter

Max.: 50.8 mm
(2 in)

Min.: 6.4 mm
(0.252 in)

Outer diameter

Max.: 66.5 mm
(2.618 in)

Min.: 15 mm
(0.591 in)

Pressure

Max.: 400 bar
(5,801.51 psi)

Min.: 80 bar
(1,160.302 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -57 °C
(-70.6 °F)

Delivered length

Max.: 134 m
(439'07" )

Min.: 37 m
(121'04" )

Description

Recommended for extremely low temperature high-pressure hydraulic oil line applications. Meets or exceeds the requirements of SAE 100R2, ISO1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. Meets Flame Resistance Acceptance Designation MSHA 2G. Recommended Couplings: Field Attachable Type T Couplings (-4 to -24), GlobalSpiral Couplings, GlobalSpiral Plus Couplings, MegaCrimp® Couplings. Superior flex impulse performance: Tested to 600,000 impulse cycles, 3 times the industry standard. FEATURES AND BENEFITS Unique low temperature tube for extended service life at extremely low temperatures. -4 to -20 validated with MegaCrimp®; -24 to -32 with GlobalSpiral™ Plus. Cover: MSHA approved. Size: 1/4" to 2".
