Oil hose M5K
NBRPVCsynthetic

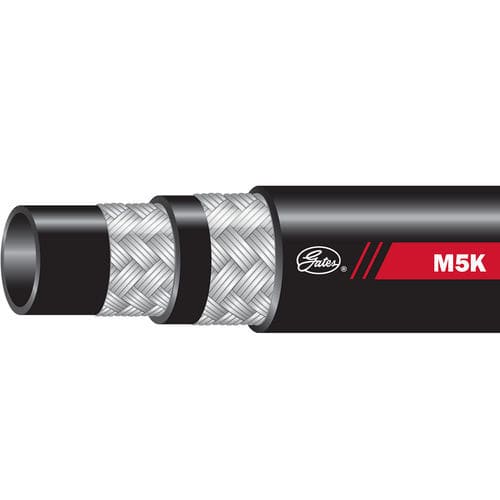

Oil hose - M5K  - Gates - NBR / PVC / synthetic
Oil hose - M5K  - Gates - NBR / PVC / synthetic
Oil hose - M5K  - Gates - NBR / PVC / synthetic - image - 2
Oil hose - M5K  - Gates - NBR / PVC / synthetic - image - 3
Add to favorites
Compare this product


Characteristics

Use
for oil
Material
NBR, synthetic, PVC
Applications
high-pressure, for hydraulic systems
Other characteristics
flexible, standard, wire-braided
Inner diameter

Max.: 12.7 mm
(0.5 in)

Min.: 6.4 mm
(0.252 in)

Outer diameter

Max.: 21.8 mm
(0.858 in)

Min.: 14 mm
(0.551 in)

Pressure

350 bar
(5,076.321 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Delivered length

Max.: 1,706.9 m
(5600'00" )

Min.: 75 m
(246'00" )

Description

Recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings, Stainless Steel B Couplings. M5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids. Superior flex impulse performance: Tested to 600,000 impulse cycles, 3 times the industry standard.
