Oil hose G1
NBRsyntheticPVC

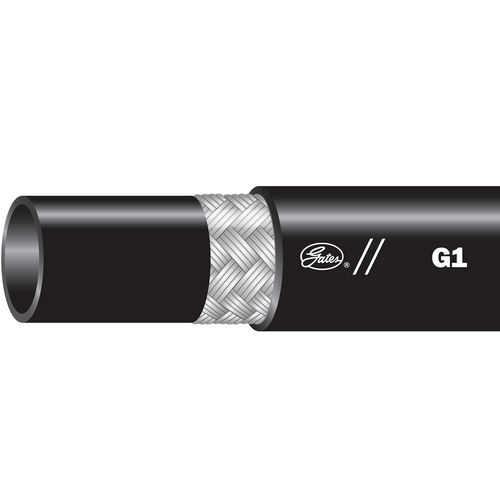

Oil hose - G1 - Gates - NBR / synthetic / PVC
Oil hose - G1 - Gates - NBR / synthetic / PVC
Oil hose - G1 - Gates - NBR / synthetic / PVC - image - 2
Oil hose - G1 - Gates - NBR / synthetic / PVC - image - 3
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Gates website for more information

Characteristics

Use
for oil
Material
NBR, synthetic, PVC
Applications
for hydraulic systems, medium-pressure
Other characteristics
standard, fire-resistant, wire-braided
Inner diameter

Max.: 50.8 mm
(2 in)

Min.: 6.4 mm
(0.252 in)

Outer diameter

Max.: 63.8 mm
(2.512 in)

Min.: 13.5 mm
(0.531 in)

Pressure

Max.: 225 bar
(3,263.349 psi)

Min.: 42 bar
(609.158 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Delivered length

Max.: 1,707 m
(5600'04" )

Min.: 37 m
(121'04" )

Description

Recommended for medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1 Type S and ISO 1436 1SN R1, as well as the performance requirements of EN 853 1SN. Recommended Couplings: Field Attachable Type T Couplings, GlobalSpiral™ Couplings (-6 to -20) GlobalSpiral™ Plus Couplings (-24 and -32), MegaCrimp® Couplings, Power Crimp® Couplings (-3), Power Crimp® Grease Couplings (-3), Stainless Steel B Couplings (-4, -6, -8, -10, -12, -20, -32). G1 hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids. Superior flex impulse performance: Tested to 450,000 impulse cycles, 3 times the industry standard. Superior flex impulse performance: Tested to 450,000 impulse cycles, 3 times the industry standard. FEATURES AND BENEFITS -4 to -20 validated with MegaCrimp®; -24, -32 with GlobalSpiral™ Plus. 50% of SAE 100R1 bend radius at rated working pressure. Type approvals: DNV, GL, LR, BV and ABS. Cover: MSHA approved. Size: 1/4" to 2".
