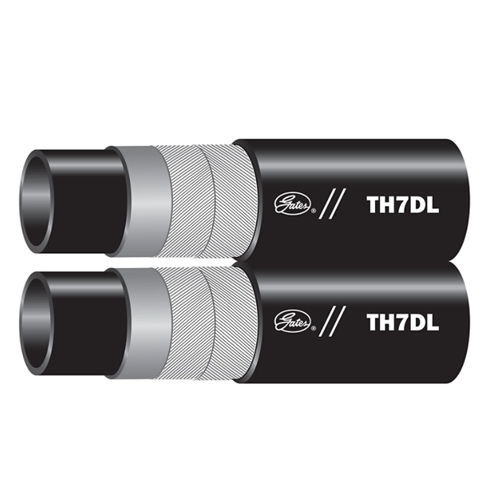

Hydraulic hose TH7DL
thermoplastichigh-pressurefor hydraulic systems

Hydraulic hose - TH7DL - Gates - thermoplastic / high-pressure / for hydraulic systems
Hydraulic hose - TH7DL - Gates - thermoplastic / high-pressure / for hydraulic systems
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Gates website for more information

Characteristics

Use
hydraulic
Material
thermoplastic
Applications
high-pressure, for hydraulic systems
Other characteristics
reinforced, perforated
Inner diameter

6.4 mm, 7.9 mm, 9.5 mm, 12.7 mm
(0.252 in, 0.311 in, 0.374 in, 0.5 in)

Outer diameter

12.7 mm, 14.2 mm, 16.3 mm, 20.3 mm
(0.5 in, 0.559 in, 0.642 in, 0.799 in)

Pressure

140 bar, 158 bar, 175 bar, 192 bar
(2,030.528 psi, 2,291.596 psi, 2,538.16 psi, 2,784.725 psi)

Temperature

Max.: 93 °C
(199.4 °F)

Min.: -54 °C
(-65.2 °F)

Delivered length

76 m
(249'04" )

Description

High pressure hydraulic applications, especially material handling equipment with mast and pulley systems like forklifts, aerial lifting, hydraulic boom cranes and many others. Cover: Black TH7 is perforated for use in general hydraulic and pneumatic service. TH7NC: The complete range is also available in a non-conductive version. Exceeds ISO 3949 R7. EN 855 R7. SAE 100R7.
