Oil hose EFG6K
NBRCRhigh-pressure

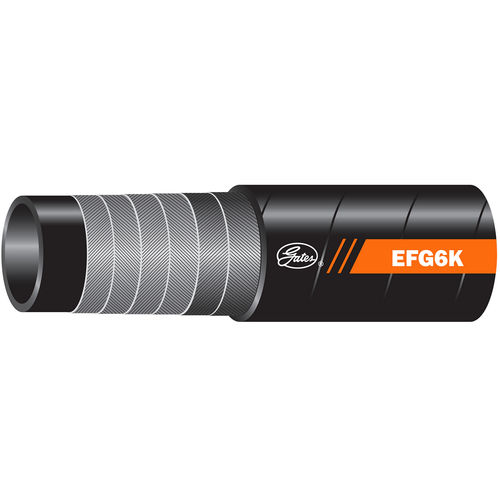

Oil hose - EFG6K - Gates - NBR / CR / high-pressure
Oil hose - EFG6K - Gates - NBR / CR / high-pressure
Oil hose - EFG6K - Gates - NBR / CR / high-pressure - image - 2
Oil hose - EFG6K - Gates - NBR / CR / high-pressure - image - 3
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Gates website for more information

Characteristics

Use
for oil
Material
NBR, CR
Applications
high-pressure
Other characteristics
flexible, fire-resistant, spiral wire
Inner diameter

Max.: 50.8 mm
(2 in)

Min.: 9.5 mm
(0.374 in)

Outer diameter

Max.: 71.1 mm
(2.799 in)

Min.: 20.3 mm
(0.799 in)

Pressure

420 bar
(6,091.585 psi)

Temperature

Max.: 121 °C
(249.8 °F)

Min.: -40 °C
(-40 °F)

Delivered length

15 m, 30 m, 61 m, 218 m
(49'02" , 98'05" , 200'01" , 715'02" )

Description

Recommended for extremely high pressure and high impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). 12EFG6K meets ISO 18752 Grade D. Recommended Couplings: GlobalSpiral™ Couplings, GlobalSpiral™ MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20). Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii (except -32). FEATURES AND BENEFITS -6 to -20 validated with GlobalSpiral™; -24, -32 with GlobalSpiral™ Maximum. Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure. EFG6K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R15. Type approvals: DNV, GL, LR, BV and ABS. Cover: MSHA approved.
