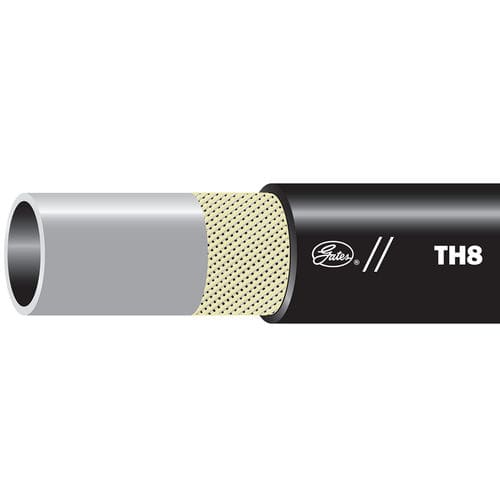

Hydraulic hose TH8 PUthermoplasticPA
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Use
- hydraulic
- Material
- PU, thermoplastic, PA
- Applications
- high-pressure, for hydraulic systems
- Other characteristics
- perforated
- Inner diameter
9.5 mm, 12.7 mm, 19.1 mm, 25.4 mm
(0.374 in, 0.5 in, 0.752 in, 1 in)- Outer diameter
19.1 mm, 22.1 mm, 28.7 mm, 36.8 mm
(0.752 in, 0.87 in, 1.13 in, 1.449 in)- Pressure
140 bar, 158 bar, 245 bar, 280 bar, 350 bar
(2,030.528 psi, 2,291.596 psi, 3,553.425 psi, 4,061.057 psi, 5,076.321 psi)- Temperature
Max.: 92 °C
(197.6 °F)Min.: -53 °C
(-63.4 °F)- Delivered length
61 m, 76 m
(200'01" , 249'04" )
Description
High pressure hydraulic applications, especially material handling equipment with mast and pulley systems like forklifts, aerial lifting, hydraulic boom cranes and many others.
Cover: Black TH8 is perforated for use in general hydraulic and pneumatic service.
Sizes -04, -06 and -08 are also available in a non-conductive version.
Exceeds ISO 3949 R8. EN 855 R8. SAE 100R8.
FEATURES AND BENEFITS
Validated with MegaCrimp®.
Size: 1/4" to 1".
