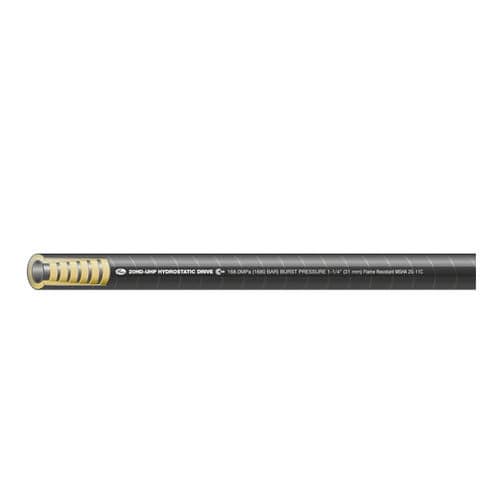

Biodegradable fluid hose HD-UHP
NBRCRhigh-pressure

Biodegradable fluid hose - HD-UHP - Gates - NBR / CR / high-pressure
Biodegradable fluid hose - HD-UHP - Gates - NBR / CR / high-pressure
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Gates website for more information

Characteristics

Use
for biodegradable fluids
Material
NBR, CR
Applications
high-pressure
Other characteristics
flexible, spiral wire
Inner diameter

16 mm, 19 mm, 25 mm, 31 mm
(0.63 in, 0.748 in, 0.984 in, 1.22 in)

Outer diameter

27.6 mm, 31.4 mm, 38.7 mm, 50 mm
(1.087 in, 1.236 in, 1.524 in, 1.969 in)

Pressure

168 MPa

Temperature

Max.: 121 °C
(249.8 °F)

Min.: -40 °C
(-40 °F)

Delivered length

15 m, 30 m
(49'02" , 98'05" )

Description

Recommended for extremely high pressure hydrostatic drive applications. HD-UHP is designed to meet or exceed all requirements of ISO 3862 R15 specifications and performance requirements of EN 856 4SP (-10 to -20) and EN 856 4SH (-12 to -20). Recommended Couplings: -6 to -20: GlobalSpiral™. FEATURES AND BENEFITS -10 to -20 validated with GlobalSpiral™. Working pressure: Application sign-off. 40% of EN 856 4SP/4SH bend radius. Standards: Gates proprietary. Cover: MSHA approved.
