Shanghai SGR Heavy Industry Machinery Co.,Ltd. is one well-known manufactory in China. This company specializes in producing all kinds of gearboxes and gear motors.
Cone worm gear reducer (double-enveloping worm gearbox) we offer can provide high torque capacity and high efficiency. Besides, the gearbox runs smoothly and makes low noise.
Transmission ratios: from 10 to 63
Input power: 1.5 up to 450 kW
Torque range: up to 40 000 Nm
|
|
Based on the proven UNICASE design Getriebebau NORD has developed the compact geared motor NORDBLOC.
Features: corrosion resistant stainless steel lead screw with brass guides
easy to operate handwheel speed control as standard
optional electric remote speed control
wide selection of motors and brake-motors
analog and digital speed indicators available
rugged cast iron body
ground and polished driving disc for minimum wear
special cam mechanism only transmits the required torque, minimizing wear
asbestos-free non-hygroscopic friction disc material for long and safe working life
case is opened without special tooling for fast and easy maintenance
|
|
Light series KLM,
straight toothed KGZ,
spiral toothed KSZ,
high-performance gear KST
|
|
DESCRIPTION:
Leading applications: general purpose, medium and fractional power drives; reduction ratios and efficiencies higher than similar drives with two-stage worm/wheel units.
Design: housings and covers of aluminium die cast up to size 85, of cast iron for size 110; helical stage and single worm/wheel units; ratios up to i=10000.
|
|
Varvel continues to score successes in its product range completion with the new hollow output shaft speed reducers 'Series RN-RO-RV'.
Each size of this new series - displayed at the former Hannover Fair, April 2007 - is designed with a common base body that gives rise to three different speed reducer lines by the means of the appropriate input module fitting: RN shaft mount, RO horizontal and RV vertical input bevel/helical.
Speed reducers are designed in six sizes - aluminium pressure die cast for the smallest three and grey cast iron for the bigger ones - with 30 reduction ratios in two and three stages, and output torques from 180 Nm to 3200 Nm.
Multiple foot-, flange- or torque arm mountings are available as well as hollow output shafts (keyed, shrink-disk, splined) and solid simple or double sided.
Same fixing footprint for the three versions, high flexibility, easy mounting and quick lead times are the pluses that make the speed reducers RN-RO-RV a really new and advanced range.
|
|
|
|
|
|
MIJNO PRECISION GEARING has designed and manufactured planetary gearheads and gearboxes for more than 25 years and is one of the World leaders. Our expertise has earned the trust of robotic, military, medical, aerospace and nuclear industries. We offer the widest variety of internal and external design features for optimum matching in your application. We are an ISO 9001 certified manufacturer.
MRA Range : silence and low, stable backlash
- Hollow shaft or Double shaft versions available
- Reduced backlash (1 arc-min max) and heavy duty torque versions available.
- Stainless Steel (Type MRS) versions available.
- Low backlash (15, 10 or 5 min arc-mins max depending upon size & ratio)
- Constant backlash (hardened and ground gears)
- High efficiency (patented Rotaxe® tooth profile)
- Quiet operation (ISO 4 quality ground gears)
- Great choice of ratios
- Great choice of output flanges
- Easy 5 minutes clamping into motor shaft (self-locating input flange)
- High range of temperature of use (-31°F to 266°F) (-35°C to 130°C)
- Reinforced waterproofness (IP 65)
- Easy maintenance
- Optional lubricating grease for the food-processing industry
For more information visit www.mijno.com. Consult us if the solution you are looking for cannot be found in our regular catalog. Our design department can create a custom gearbox most adapted to your needs.
|
|
|
Parker Bayside''s Stealth Advanced RS Right Angle Planetary Gearhead delivers the high performance features of our STEALTH RS in a compact, right angle package. With 7 frame sizes and 9 gear ratios to choose from, you are guaranteed to find a Stealth Advanced RS gearhead to fit your servo motor applications.
|
|
Shanghai SGR Heavy Industry Machinery Co.,Ltd. is one well-known manufactory in China. This company specializes in producing all kinds of gearboxes and gear motors.
SGR planetary gear unit for industrial applications. The product configuration is highly versatile, due to several options as far as mounting, gear layout, the output shaft and motor interface.
Transmission ratios: up to 5 000
Input power: up to 200 kW
Torque range: up to 540 000 Nm
Output speed: 0.425 up to 445 RPM
If need customize product, please contact us for more information.
|
|
# High Torsional Stiffness
Contact of three planetary gears in the steel crown gear along with a large diameter utput, provide outstanding rigidity
# Cool Operation
Unique fins dissipate heat from servo motor and helps to lighten gearbox
# Universal Servo Interface
Flexible slotted bolt circle and oversized pilot equals easy motor installation and no adapters
# Modular High Tech Design
Modularity and flexible design offer an advanced technology reducer that can be universally mounted
# Low Backlash
AP precision gearbox stage provides high ratio and extremely low backlash
# High Capacity Output Bearings
Two output bearings, located forward in the gearbox result in higher bearing capacity and longer bearing life
|
|
|
|
|
|
QUANTIS
The Dodge Quantis line features three global industry-leading gearmotors and reducer solutions: In-Line Helical (ILH), Motorized Shaft Mount (MSM) and Right Angle Helical-Bevel (RHB).
Pictured Unit Description:-
The QUANTIS RHB product line features a helical-bevel-helical gear train that offers cost-effective, high and low-speed solutions with efficiency ratings up to 94%.
Dodge Quantis Right-Angle Helical Bevel (RHB)
• Eight sizes: 38, 48, 68, 88, 108, 128, 148,
and 168
• Torque ratings up to 13,500 Nm
• Ratio: 4:1 to 307:1
• Input power of 0.18 - 55kW
• Two output flange options: B5 and B14
• Tie rod kit option
• Optional XT harsh duty output seal for wet and abrasive environments.
• CEMA screw conveyor drive option
• Twin Tapered bushings Standard and Short Shaft
• Scoop mount motor/reducer option
Features:-
Spring loaded double lip seals of nitrile rubber (NBR) material. All seals are rubber coated to eliminate seal-to-bore joint leakage.
Multiple output options – solid shaft, double shaft, straight hollow bore, shrink disk and tapered hollow in both inch and metric dimensions.
Reducer housings are constructed of class 30 gray iron with cast internal ribbing for added strength.
All gearboxes are filled with Mobilgear 600 XP 220 mineral oil prior to shipment to insure proper oil grade and fill level.
Multiple input options – integral motor, separate input shaft, and two c-face
options – clamp collar and 3-piece coupled.
Gearing is of single helical design and ground to provide an ellipsoid tooth form.
|
|
The high degree of modularity of CMB bevel helical gearbox allows it to be completely interchangeable with CM wormgearboxes. It is possible to set up the version required using output flanges, output shafts and optional torque arms.
Common features of all CMB range are:
- Die-cast aluminum housing and input flanges
- Ground helical gears
- Permanent synthetic oil long-life lubrication
|
|
Varvel continues to score successes in its product range completion with the new hollow output shaft speed reducers 'Series RN-RO-RV'.
Each size of this new series - displayed at the former Hannover Fair, April 2007 - is designed with a common base body that gives rise to three different speed reducer lines by the means of the appropriate input module fitting: RN shaft mount, RO horizontal and RV vertical input bevel/helical.
Speed reducers are designed in six sizes - aluminium pressure die cast for the smallest three and grey cast iron for the bigger ones - with 30 reduction ratios in two and three stages, and output torques from 180 Nm to 3200 Nm.
Multiple foot-, flange- or torque arm mountings are available as well as hollow output shafts (keyed, shrink-disk, splined) and solid simple or double sided.
Same fixing footprint for the three versions, high flexibility, easy mounting and quick lead times are the pluses that make the speed reducers RN-RO-RV a really new and advanced range.
|
|
|
Worm gearboxes (SG) are noted for their very quiet running. The worm-gear shaft has bearings on both sides. The gear components, made of bronze or steel, and the lubrication ensure a long service life at the rated torque. In many applications, the location of the output shaft at 90° to the motor shaft provides an optimum design solution. On request, worm-gearboxes can be supplied with a hollow output shaft.
|
|
|
|
|
|

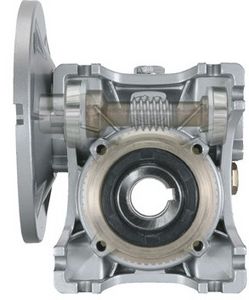

The patented “BOX” series is made with aluminium housing from size 25 up to 90.
The housing has been designed with parametric CAD SW supported by programs of analysis of the thermal dissipation capacity and the structural resistance/deformation under the effect of working loads.
The wormshaft is made in case hardened steel and ground machined, while the worm wheel is in shell cast bronze. Before being assembled, the worm wheel is submitted to a running-in working period to improve the surface finishing and hardness.
From type 63 and up, 2 taper roller bearings are mounted on the wormshaft.
The combination of this characteristic and 2 nilos permits the mounting of the whole BOX range, from the size 25 to the size 110, in the positions V5 and V6 without any need of additional interventions
The gear unit is equipped with a full set of filler, level and breather plugs, permitting all mounting positions and facilitating the management of the stock.
The sizes 25 up to 90 are supplied with long-life synthetic oil and they don’t require any maintenance
Mating surfaces are machined for a perfect planarity
A paint coat cancels the negative effects of the aluminium porosity and protects the housing from oxidation
|
|
Features: robust cast iron housing
gearing meets up to date international high standards
wide selection of motors and brake-motors including inverter-duty motors
units available for harsh environments
integrally cast foot or flange designs
sleek design for easy cleaning
all bearings selected to provide long and trouble-free operation
high quality sealing for enhanced leakage-protection
output side is integral part of the housing, no bolt-on output cover to cause leakage or gear-misalignment
|
|
Shanghai SGR Heavy Industry Machinery Co.,Ltd. is one well-known manufactory in China. This company specializes in producing all kinds of gearboxes and gear motors.
SGR worm gear reducers are designed for industry worldwide. The products are
suitable for the modular assembling of flanges, or feet, or torque arm.
Transmission ratios: 7.5 up to 100
Input power: 0.04 up to 15 kW
Torque rang: 10 up to 1 500 Nm
|
|
CM wormgearboxes main features:
• Die-cast aluminum housing on sizes 030, 040, 050, 063, 075 and 090; cast iron housing on sizes 110 and 130
• Permanent synthetic oil long-life lubrication
• Double taper roller bearing on the worm shaft on sizes 075, 090, 110 and 130
|
|
DESCRIPTION:
Leading applications: general purpose, medium and fractional power drives
Design: housings and covers of aluminium die cast up to size 85, of cast iron for size 110; single worm/wheel units; ratios up to i=100.
|
|
|
Our worm gear units have a compact design with high torque capacity and are ideal for tough applications such as wash down environments. Our special solution allows you to have anti-corrosive protection similar to a stainless steel gearbox at a much lower cost.
|
|
|
Leakproof performance with low backlash. Substantially higher torque at low speed output, yet capable of running at more than twice the speed of the original Float-A-Shaft design. One-piece housing design eliminates leakage. Less than 1 degree of backlash on reversal on input. Shaft speeds up to 1200 RPM. Bores ground to 0.002" total tolerance. Prelubricated and ready for installation.
|
|
Series W - WhisperDrive high precision servo gearheads are ideal for your most demanding motion control applications.
Inside the WhisperDrive is Cone Drive's true double-enveloping worm gearset. Offered in standard, low and zero backlash versions, you can always find the right solution for your application.
Proven reliability:
- Double-enveloping worm gearing provides high torque capacity, high efficiency, quiet and smooth running, and high torsional rigidity.
- Factory filled with synthetic gear oil, double oil seals and O-rings provide IP65 protection and leak free operation.
- Standard hollow shaft provides compact mounting which saves space and not needing a coupling saves cost.
- Integrated zero backlash bellows coupling provides fast, error-free alignment.
- Piloted motor flange mounts directly to any servomotor, NEMA motor, or IEC motor
- Three levels of Precision available: Absolute zero backlash for life, low backlash as low as 3 arc minutes and standard backlash.
|
|
Gear for stepless height adjustment for sit/sit- or sit/stand work stations. The gear is adapted for both manual and motorized height adjustment. Deflection gear unit, predominantly adapted for manual sit/sit work stations.
- Ratio 1:1 or 1:2
- Housing made of reinforced glass-fibre
- Case hardened toothed wheels of steel, reinforced tooth system
- Particularly suitable for the driving with motor system KTS 3143
|
|
Neeter Drive (a division of Power Jacks) offers a vast variety of Spiral Bevel Gearboxes in its four ranges, features from the various ranges include ratios up to 6:1, hollow shaft, speed increasing, motor mounting flanges, and light weight aluminium housings. The original range, now known as the Range N features fine tooth gears (greater overlap ratio), shouldered shafts, O-rings in all covers and supplied with double rounded keys in the customer end of the shafts.
The Range N could be key to over come or help in your design and applications. Over many years this range has been adapted to suit customer needs; whether it's a minor alteration, including longer or, shorter shafts or even a simple spigot on covers this can be achieved. The main advantage of the units specifically adapted to meet customers needs, is that they allow the units to easily and neatly interface with the end product, saving assembly time and cost.
|
|
The planetary gearboxes from SUMER-TRANSMISSIONS are high performance equipments intended for the following fields :
- Robotics - Servo-mechanisms - Space crafts - Aeronautics - Vacuum - Nuclear - Armament - Special purpose machines and special adaptations.
They are the outcome of many years of experience resulting from continuous exchanges with our customers, and from the use of the most sophisticated new techniques applied to the field of components and material quality, thermal treatments and precision machining.
These compact, hard wearing equipments offer exceptional characteristics for their size, taking into account their high torsion rigidity, low inertia of rotating parts, number of available gear ratios, or their lifetime in the most critical operating conditions.
|
|
|
Univeral right-angle gearbox coupling,consisting of two 45° helical gears that mesh at right angles. Designed to turn power around any corner, it can be operated in either direction and slides axially along the drive or driven shaft. Aluminum housing encloses the gears. Floating design maintains perfect alignment and eliminates the use of dangerous chain sprocket drives. Low torque journal bearing or a high torque sealed roller bearing series. Rated for a maximum of 500 RPM. Metric models are available.
|
|
SIPCO's TechnoGear® Spiral Bevels are for systems requiring a high degree of positioning accuracy and reliability. Our units are fabricated of quality materials and tested for your specific applications, to ensure dependable and durable service. Our spiral bevel gears with optimized tooth profile offer the best gear accuracy, backlash and silent running operation with 95-98% efficiency ratings.
SIPCO's TechnoGear® Spiral Bevels are available with...
- Twelve (12) standard sizes
- Ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, 6:1 (8-10 opt)
- Double reduction: 10:1, 12:1, 15:1, 18:1, 20:1
- Speed increaser: 1:1, 1:1.5, 1:2
- Solid or hollow input/output designs
- Low backlash: 15, 10, 5 and 3 arc minute
|
|
The planetary gearboxes from SUMER-TRANSMISSIONS are high performance equipments intended for the following fields :
- Robotics - Servo-mechanisms - Space crafts - Aeronautics - Vacuum - Nuclear - Armament - Special purpose machines and special adaptations.
They are the outcome of many years of experience resulting from continuous exchanges with our customers, and from the use of the most sophisticated new techniques applied to the field of components and material quality, thermal treatments and precision machining.
These compact, hard wearing equipments offer exceptional characteristics for their size, taking into account their high torsion rigidity, low inertia of rotating parts, number of available gear ratios, or their lifetime in the most critical operating conditions.
|
|
The units of the RAN series are designed to fit the purpose of transmission laid out in right angle setting. Easy to fit and almost maintenance-free, RAN units offer multiple shaft arrangements and a choice of several exact gear ratios, beside the 1:1, that come handy when designing synchronized drive system . Also available in the version for screw jack duty.
|
|
|
Gear tooth geometry design combines maximum efficiency with high load carrying capacity and minimal noise generation. Serviceability of the product was key in the design of the Series G range allowing easy maintenance for long life and reliability, which are synonymous with our field reputation.
|
|
|
|
