Planetary gear reducer MYDR series

1000 - 5000 Nm10 - 20 Nmflange-mounted

Introduction

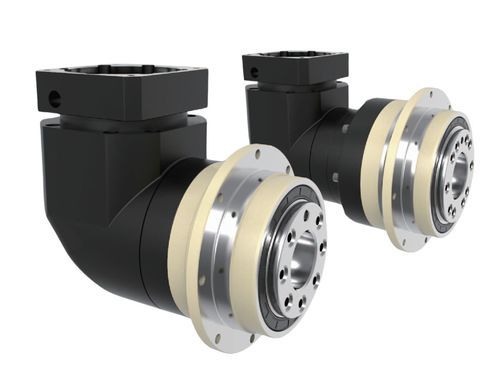

The HONPINE MYDR Series precision planetary gearbox features a high-rigidity flange output design combining a wide reduction ratio range, high torque capacity and reliable transmission performance for industrial motion-control systems. Offered in seven frame sizes (47 mm to 255 mm), the series provides reduction ratios from 4:1 up to 200:1 and rated output torque from 14 Nm to 2,000 Nm. Backlash options include ≤2 arcmin for applicable single-stage (P0) and ≤4 arcmin for specified two-stage configurations.

Features

• High‑rigidity flange output for direct mounting to driven equipment
• Wide reduction ratio range: 4:1 to 200:1 (single- and multi-stage)
• Seven frame sizes: MYDR047, MYDR064, MYDR090, MYDR110, MYDR140, MYDR200, MYDR255
• Rated output torque: approx. 14 Nm to 2,000 Nm depending on model and ratio
• Backlash classes: Ultra‑precision (P0) ≤2 arcmin single-stage; Precision (P1); Standard (P2)
• High transmission efficiency: ≥95% (single-stage) ; ≥92% (multi-stage)
• Synthetic grease lubrication, protection class IP65
• Operating temperature range: -10℃ to +90℃

Model Selection / Available Series
Series: MYDR (MYDR047, MYDR064, MYDR090, MYDR110, MYDR140, MYDR200, MYDR255). Reduction ratios and stages span single-stage and multi-stage configurations enabling gear ratios from 4 up to 200 (specific available ratios depend on stage count and model).

Specification (table rows; columns separated by " | ")
Specification | Unit | Stages | Gear Ratio¹ | MYDR047 | MYDR064 | MYDR090 | MYDR110 | MYDR140 | MYDR200 | MYDR255
Rated Output Torque T₂N | Nm | 1 | 4 | 19 | 48 | 130 | 270 | 560 | 1,100 | 1,700
| | | 5 | 22 | 60 | 160 | 330 | 650 | 1,200 | 2,000
| | | 6 | - | 55 | 150 | 310 | 600 | - | -
| | | 7 | 19 | 50 | 140 | 300 | 550 | 1,100 | 1,800
| | | 8 | 17 | 48 | 130 | 270 | 560 | 1,000 | 1,600
| | | 10 | 14 | 60 | 160 | 330 | 650 | 520 | 1,220
| | | 14 | - | 50 | 140 | 300 | 550 | 1,100 | 1,800
| | | 20 | - | 40 | 100 | 230 | 450 | 520 | 1,220
| | 2 | 20 | 19 | 48 | 130 | 270 | 560 | 1,100 | 1,700
| | | 25 | 22 | 60 | 160 | 330 | 650 | 1,200 | 2,000
| | | 35 | 22 | 60 | 160 | 330 | 650 | 1,200 | 2,000
| | | 40 | 22 | 48 | 130 | 270 | 560 | 1,200 | 2,000
| | | 50 | 22 | 60 | 160 | 330 | 650 | 1,200 | 2,000
| | | 60 | - | 55 | 150 | 310 | 600 | - | -
| | | 70 | 22 | 60 | 160 | 330 | 650 | 1,200 | 2,000
| | | 80 | - | 48 | 130 | 270 | 560 | 一 | 一
| | | 100 | 22 | 60 | 160 | 330 | 650 | 1,200 | 2,000
| | | 120 | - | - | - | 150 | 310 | 600 | - | 一
| | | 140 | - | - | - | 140 | 300 | 550 | 1,100 | 1,800
| | | 160 | - | - | - | 120 | 260 | 500 | - | -
| | | 200 | - | - | - | 100 | 230 | 450 | 520 | 1,220
Maximum Output Torque T₂B | Nm | 12 | 4~200 | 3 × Rated Output Torque (applies across models)
Rated Input Speed n₁ | rpm | 12 | 4~200 | MYDR047: 5,000; MYDR064: 5,000; MYDR090: 4,000; MYDR110: 4,000; MYDR140: 3,000; MYDR200: 3,000; MYDR255: 2,000
Maximum Input Speed n₁B | rpm | 12 | 4~200 | MYDR047: 10,000; MYDR064: 10,000; MYDR090: 8,000; MYDR110: 8,000; MYDR140: 6,000; MYDR200: 6,000; MYDR255: 4,000
Ultra Precision Backlash (P0) | arcmin | 1 | 4~20 | MYDR047: - ; MYDR064: - ; MYDR090: ≤2 ; MYDR110: ≤2 ; MYDR140: ≤2 ; MYDR200: ≤2 ; MYDR255: ≤2
| | 2 | 20~200 | - | - | ≤4 | ≤4 | ≤4 | ≤4 | ≤4
Precision Backlash (P1) | arcmin | 1 | 4~20 | MYDR047: ≤4 ; MYDR064: ≤4 ; MYDR090: ≤4 ; MYDR110: ≤4 ; MYDR140: ≤4 ; MYDR200: ≤4 ; MYDR255: ≤4
| | 2 | 20~200 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7
Standard Backlash (P2) | arcmin | 1 | 4~20 | MYDR047: ≤6 ; MYDR064: ≤6 ; MYDR090: ≤6 ; MYDR110: ≤6 ; MYDR140: ≤6 ; MYDR200: ≤6 ; MYDR255: ≤6
| | 2 | 20~200 | ≤9 | ≤9 | ≤9 | ≤9 | ≤9 | ≤9 | ≤9
Torsional Rigidity | | 12 | 4~200 | 7 | 13 | 31 | 82 | 151 | 440 | 1,006
Maximum Bending Moment M₂KB² | Nm | 12 | 4~200 | 42.5 | 125 | 235 | 430 | 1,300 | 3,064 | 5,900
Permissible Radial Load F₂rB² | N | 12 | 4~200 | 1,080 | 2,110 | 2,310 | 4,800 | 6,200 | 5,450 | 10,600
Service Life | hr | 12 | 4~200 | 20,000* (typical expected service life under rated conditions)
Efficiency η | % | 1 | 4~20 | ≥95% (single-stage) ; 2 | 20~200 | ≥92% (multi-stage)
Weight | kg | 1 | 4~20 | 1.1 | 2.1 | 5.9 | 10.5 | 21.9 | 50.9 | 85.4
| 2 | 20~200 | 1.4 | 1.9 | 4.5 | 9.8 | 20.1 | 45.4 | 85.9
Operating Temperature | ℃ | 12 | 4~200 | -10℃ to +90℃
Lubrication | | 12 | 4~200 | Synthetic grease
Protection Class | | 12 | 4~200 | IP65
Mounting Position | | 12 | 4~200 | Flexible mounting orientations supported
Noise Level (n₁ = 3000 rpm) | dB | 12 | 4~200 | ≤61 | ≤63 | ≤65 | ≤68 | ≤70 | ≤72 | ≤74

Technical characteristics / Applications

• Industrial automation, packaging machines, assembly systems, conveyor equipment and OEM motion-control applications
• Multiple backlash grades (P0/P1/P2) for selection according to positioning accuracy requirements
• Choose frame size and stage count to match rated torque, inertia and permissible loads
• Typical service life ~20,000 h under rated conditions; consult technical data for detailed lifetime and maintenance guidance
