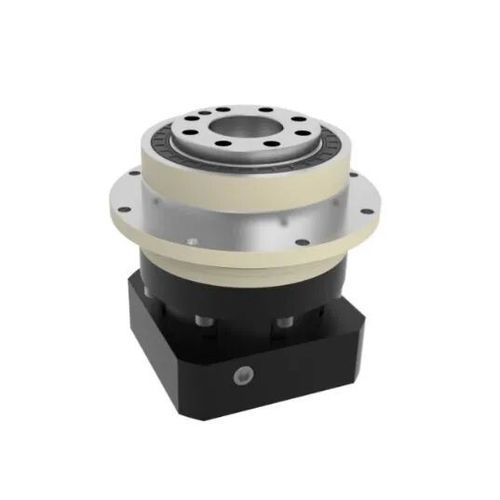

Planetary gear reducer MYD series
coaxialparallel-shafthollow-shaft

Planetary gear reducer - MYD series - Suzhou Honpine Precision Industry Co., Ltd. - coaxial / parallel-shaft / hollow-shaft
Planetary gear reducer - MYD series - Suzhou Honpine Precision Industry Co., Ltd. - coaxial / parallel-shaft / hollow-shaft
Planetary gear reducer - MYD series - Suzhou Honpine Precision Industry Co., Ltd. - coaxial / parallel-shaft / hollow-shaft - image - 2
Add to favorites
Compare this product
Go to the Suzhou Honpine Precision Industry Co., Ltd. website for more information

Characteristics

Type
planetary
Shaft orientation
coaxial, parallel-shaft
Shaft configuration
hollow-shaft, solid-shaft, robot flange
Torque
200 - 500 Nm, 100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm, 1000 - 5000 Nm
Mounting
flange-mounted, shaft-mounted, foot-mounted
Configuration
flange, modular, hollow, miniature
Number of stages
single-stage, two-stage
Performance
high-performance, precision, high-efficiency, backlash-free, low-noise, high-torque, low-backlash, for heavy loads, high-rigidity, high-capacity, maintenance-free, high-power, high-speed
Applications
for wind turbine, for robotics, transmission, for servo motors, for industrial applications, for milling applications, for lathes, for hydraulic turbines, for winders, for generators, for aerial cable applications, for Yankee dryers, for the rubber industry, escalator, for automation, for reversible hot mills, cable and pipe, for paper machines, for engine, for crawler carriers, for conveyor, for machinery, for mixers, for aerators, for blowers, for electric motors, machine, for lifting applications, tool, for large parasols, for excavators, for doors, for gas, for cutting machines, for the metallurgical industry, for telecommunications equipment, for mining equipment, for string wire drawing machines, drive, for machine tools, for valves, for electrical drives, building, antenna, for grinding, for marine applications, for mining applications, for the sugar industry, for coordinate measuring machines, for hoist units, for injection molding machines, for the chemical industry, for harsh environments, for aeronautical applications, for butterfly valves, for DC motors, for bucket elevators, electronic equipment, for the paper industry, for material handling equipment, for cranes, for agitators, for stepper motors, for food industry machinery, for the plastics industry, for workstation height adjustment, for pump, mill duty, for the cement industry, double-speed, for lauter tun, for the food industry, for heavy-duty applications, winch, for vehicles, profile, for drums, for furniture level adjustment, for laser applications, for pharmaceutical products, for vertical mills, for straightening machine, centrifuge, for tire manufacturing, for extruders, for large sun shades, for actuators, for wastewater treatment plants, for printing machines, for sit/stand workstation height adjustment, for pipes, for chemical reactors, for motor coupling, for power generation, joint, for rotary turntables, for hydrapulpers, for cooling towers, for textiles, for AGV, for medical devices, for the petrochemical industry, for conveyor belts, condenser, for conveyors, for welding machines, for automotive applications, for shafts, for roller press, for slewing drive, packaging machine, wheel, for roller mills, for rack-and-pinion drives, for continuous operation, for trolleys, for elevators
Other characteristics
mechanical transmission, high-quality, custom-made, with motor adapter, IP65
Rotational speed

Max.: 10,000 rpm
(62,831.8531 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Backlash

Max.: 0 rad

Min.: 0 rad

Gear ratio

Max.: 100 unit

Min.: 4 unit

Weight

Max.: 70.4 kg
(155.21 lb)

Min.: 0.7 kg
(1.54 lb)

Description

Introduction
The HONPINE MYD Series precision planetary gearbox features a high-rigidity flange output design for motion-control applications requiring exceptional positioning accuracy, high torque transmission and long-term reliability. Available in seven frame sizes (47 mm–255 mm) and a wide range of reduction ratios, it suits industrial robots, CNC machines, automated lines and laser-processing equipment.

Functional description
Ultra-low backlash and high torsional rigidity provide excellent repeatability and smooth precise motion. Single-stage (P0) backlash ≤1 arcmin; two-stage (P0) ≤3 arcmin. Configurations support servo motors and robotic joints with rated output torque from 14 Nm to 2000 Nm and maximum output torque up to 3× rated.

Specification summary (key data)
  • Series: HONPINE MYD Series
  • Frame sizes: MYD047, MYD064, MYD090, MYD110, MYD140, MYD200, MYD255 (47–255 mm)
  • Gear ratio range: 4:1–100:1
  • Rated output torque: 14 Nm–2000 Nm (model-dependent)
  • Maximum output torque: up to 3× rated
  • Rated input speed: typically up to 5,000 rpm for smaller frames; lower for larger frames
  • Maximum input speed: up to 10,000 rpm (model-dependent)
  • Backlash levels: P0 ≤1 arcmin (single-stage); ≤3 arcmin (two-stage). P1/P2 available per model
  • Efficiency: single-stage ≥97%; common two-stage configurations ≥94%
  • Operating temperature: -10 °C to +90 °C
  • Lubrication: synthetic grease (factory filled)
  • Protection class: IP65
  • Typical weights (1-stage): 0.7 kg–56.1 kg; (2-stage): 1.0 kg–70.4 kg
  • Noise level (n1 = 3000 rpm): approx. ≤56 dB to ≤70 dB depending on size


Models and selection
Models MYD047–MYD255 cover the full torque and ratio range; consult the detailed specification table on the product page for per-model torsional rigidity, allowable loads, bending moment and exact speed/torque values.

Applications
  • Industrial robots (joints, axes)
  • CNC machine tools (high-precision axes)
  • Automated production lines
  • Laser processing and precision manufacturing equipment

Catalogs
