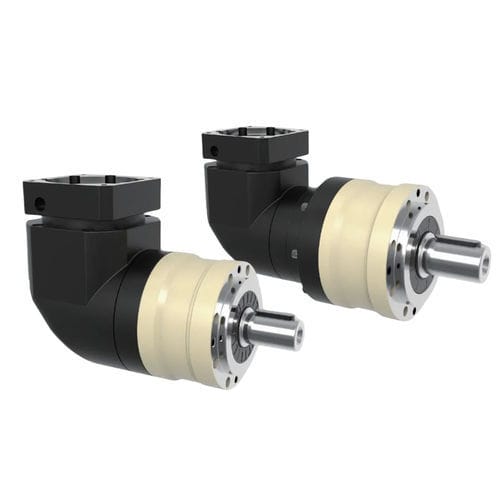

Right angle angle gearbox MYBR-E series

90°low angular clearancecompact

Introduction

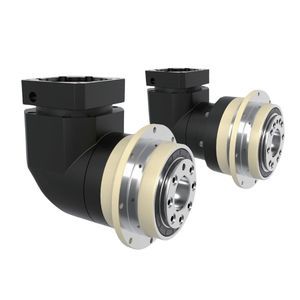

The HONPINE MYBR-E Series right-angle (90°) planetary gearbox is engineered for medium-to-large industrial machinery that requires high output torque, flexible reduction ratios and compact installation. Available in six frame sizes (MYBR-E070 to MYBR-E155), it covers gear ratios from 3:1 to 200:1 and rated output torque from 40 N·m to 2000 N·m for light- to heavy-duty servo applications.

Design and performance
The compact 90° configuration maximizes installation options while delivering high transmission efficiency, controlled backlash (≤6 arcmin single-stage; ≤9 arcmin two-stage), defined torsional rigidity and extended service life. Rated and maximum input speeds depend on frame (e.g. MYBR-E070: nominal up to 5,000 rpm, max 10,000 rpm). Efficiency: up to 95% (single-stage) and up to 92% (two-stage).

Specifications (selected)

• Frame sizes: six sizes from 70 mm to 155 mm (MYBR-E070 / MYBR-E090 / MYBR-E120 / MYBR-E155 etc.)
• Gear reduction ratios: 3:1 to 200:1 (single- and two-stage configurations)
• Rated output torque T2N: approx. 40–2000 N·m depending on frame and ratio
• Maximum output torque T2B: up to 3 × T2N (model/ratio dependent)
• Torsional rigidity examples: MYBR-E070: 7 N·m/arcmin; MYBR-E090: 14; MYBR-E120: 25; MYBR-E155: 50
• Permissible radial/axial loads (examples): radial up to 9,400 N (MYBR-E155); axial values listed by frame
• Operating temperature: −10 °C to +90 °C; protection class: IP65; lubrication: synthetic grease
• Noise level (n1 = 3000 rpm): ≤63–70 dB depending on frame

Applications

• Packaging machinery
• Conveyor and material handling systems
• Woodworking and machine tools
• Industrial automation and servo-driven equipment

Model selection & notes
Select the frame and ratio by matching required output torque, moment of inertia (J1), permissible radial/axial loads and input speed. For peak or dynamic loads verify maximum output torque (up to 3× T2N) and confirm allowable input speed per frame. Consult HONPINE datasheets or technical support for detailed dimensions, exact inertia values and mounting options.
