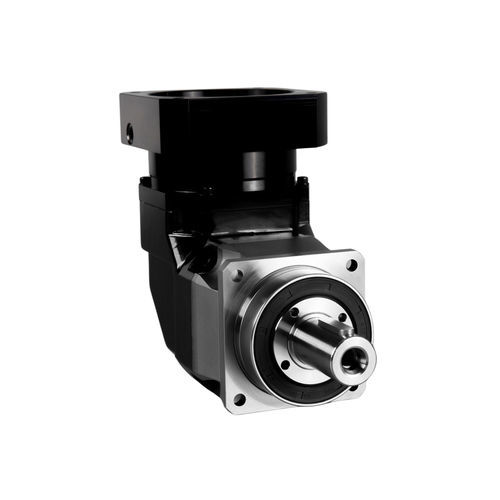

Bevel angle gearbox NFR series

right angle90°flange

● Introduction The Right Angle High Load Capacity Planetary Gearbox is a planetary gear transmission system with a vertical 90-degree layout between the input and output shafts, both positioned on the same plane. The output end is reinforced with high-load tapered roller bearings, enabling it to withstand greater radial forces and overturning moments. Power transmission and speed reduction are achieved through multi-stage gear meshing. Its compact and space-efficient design makes it ideal for general industrial applications with spatial constraints or requiring vertical input-output orientation, particularly suited for machine tools demanding high resistance to overturning moments. Features ● High-Load Tapered Roller Bearings The output end incorporates high-load tapered roller bearings to withstand higher radial forces and overturning moments. ● 90-Degree Input-Output Configuration The perpendicular shaft arrangement optimizes space utilization and redirects output torque. ● High-Efficiency Helical and Bevel Gears Utilizes helical gears combined with an integrated bevel gear set, maintaining over 90% efficiency in multi-stage transmission. ● High Precision and Low Backlash Precision ground gears and a collet-style locking mechanism minimize backlash to ≤2 arcminutes (1/30 of a degree), meeting servo systems' stringent positioning accuracy requirements. ● Exceptional Load Capacity Multi-tooth meshing distributes loads evenly. Carburized and quenched gears paired with needle roller bearings enable output torque up to several thousand Nm and superior shock resistance. ● Low Noise and Stable Operation Patented noise-reduction technology and helical tooth rolling meshing design reduce operational noise while ensuring smooth, vibration-free performance. ● Durability and Maintenance-Free Design High-grade seals and permanent lubrication technology ensure a gear lifespan exceeding 20,000 hours, even in harsh environments with high temperatures or dust exposure. More information please view https://www.honpine.com/products/Planetary-Reducer/Standard-Planetary-Reducer/Right-angle-Planetary-Gear-Reducer/90-Degree-Input-Output-Roller-Bearing-Planetary-Gearbox.html
