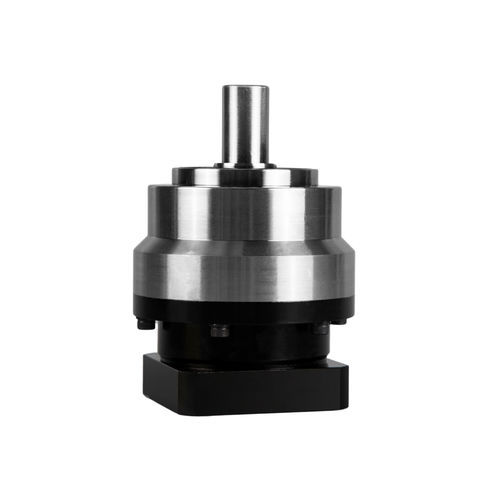

Planetary gear reducer NE series

bevelvertical output shaft50 - 100 Nm

Product Introduction The Shaft-Output Circular-Flange Planetary Gearbox is a planetary gear transmission system with a vertical 90-degree layout between the input and output shafts, both positioned on the same plane. The gearbox features a circular housing and a circular output flange. Power transmission and speed reduction are achieved through multi-stage gear meshing. Its compact and space-efficient design makes it ideal for general industrial applications with spatial constraints or requiring vertical input-output orientation. Features - Circular Housing and Flange Design: The gearbox housing and output flange adopt a circular structure. Screws are fastened vertically downward from the top, and additional flanges can be customized on the circular output end to meet specific customer requirements. - 90-Degree Input-Output Configuration: The perpendicular shaft arrangement optimizes space utilization and redirects output torque. - High-Efficiency Helical and Bevel Gears: Utilizes helical gears combined with an integrated bevel gear set, maintaining over 90% efficiency in multi-stage transmission. - Ultra-High Precision and Low Backlash: Precision ground gears and a collet-style locking mechanism minimize backlash to ≤2 arcminutes (1/30 of a degree), meeting servo systems' stringent positioning accuracy demands. - Exceptional Load Capacity: Multi-tooth meshing design evenly distributes loads. Carburized and quenched gears paired with needle roller bearings deliver output torque up to several thousand Nm and outstanding impact resistance. - Noise Reduction and Vibration-Free Stability: Patented noise-reduction architecture and helical tooth rolling meshing technology reduce operational noise to minimal levels while ensuring smooth, vibration-free performance. - Extended Durability and Zero Maintenance: Premium seals and lifetime lubrication technology ensure a gear service life exceeding 20,000 hours, even in extreme environments with high temperatures or heavy dust exposure. Specifications - Rated output torque: NE070: 50 Nm, NE090: 120 Nm, NE120: 190 Nm, NE155: 320 Nm, NE205: 550 Nm, NE235: 1080 Nm - Max acceleration torque: 1.8 times rated output torque - Emergency stop torque: 3 times rated output torque - Rated input speed: 5000 rpm (NE070), 4000 rpm (NE090, NE120), 3000 rpm (NE155, NE205), 2000 rpm (NE235) - Max input speed: 10000 rpm (NE070), 8000 rpm (NE090, NE120), 6000 rpm (NE155, NE205), 4000 rpm (NE235) - Ultraprecise backlash: ≤1 arcmin (NE090, NE120, NE155, NE205, NE235) - Precise backlash: ≤3 arcmin - Standard backlash: ≤5 arcmin - Orsional rigidity: NE070: 8 Nm/arcmin, NE090: 14 Nm/arcmin, NE120: 27 Nm/arcmin, NE155: 52 Nm/arcmin, NE205: 148 Nm/arcmin, NE235: 305 Nm/arcmin - Max. radial Force: NE070: 1730 N, NE090: 3250 N, NE120: 7000 N, NE155: 9600 N, NE205: 14500 N, NE235: 27800 N - Max. axial Force: NE070: 865 N, NE090: 1625 N, NE120: 3500 N, NE155: 4800 N, NE205: 7250 N, NE235: 13900 N - Tilting moment: NE070: 77 Nm, NE090: 152 Nm, NE120: 325 Nm, NE155: 530 Nm, NE205: 920 Nm, NE235: 1840 Nm - Service Life: 20000hr (continuous operation 10000hr) - Efficiency: ≥97% (3~10 ratio), ≥94% (15~100 ratio) - Weight: NE070: 1.4 kg, NE090: 3.3 kg, NE120: 6.9 kg, NE155: 13.0 kg, NE205: 31.0 kg, NE235: 48.0 kg - Operating Temperature: -10℃-90℃ - Lubrication: Synthetic grease - Protection Class: IP65 - Mounting Position: Any direction - Noise Level (N1=3000rpm, Non-Loaded): ≤58 dB(A) (NE070), ≤60 dB(A) (NE090), ≤63 dB(A) (NE120), ≤65 dB(A) (NE155), ≤67 dB(A) (NE205), ≤70 dB(A) (NE235) Tags: precision planetary gearbox, servo planetary gearbox, industrial planetary gearbox, high precision planetary gearbox, miniature planetary gearbox, mini planetary gearbox, high precision gearbox Technical Characteristics / Specifications - Vertical 90-degree input-output shaft layout - Circular housing and output flange - Multi-stage gear meshing for power transmission and speed reduction - Compact, space-saving design - High-efficiency helical and bevel gears - Ultra-high precision, low backlash (≤2 arcmin) - Exceptional load capacity (output torque up to several thousand Nm) - Noise reduction and vibration-free operation - Extended durability (service life >20,000 hours) - Protection class: IP65 - Operating temperature: -10℃ to 90℃ - Lubrication: Synthetic grease - Mounting position: Any direction
