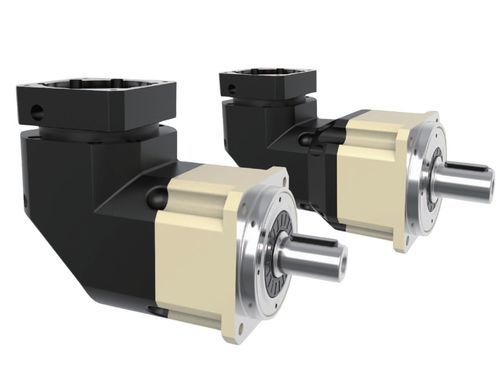

Planetary servo-gearbox MYAR series
right anglecoaxialvertical output shaft

Planetary servo-gearbox - MYAR series - Suzhou Honpine Precision Industry Co., Ltd. - right angle / coaxial / vertical output shaft
Planetary servo-gearbox - MYAR series - Suzhou Honpine Precision Industry Co., Ltd. - right angle / coaxial / vertical output shaft
Planetary servo-gearbox - MYAR series - Suzhou Honpine Precision Industry Co., Ltd. - right angle / coaxial / vertical output shaft - image - 2
Add to favorites
Compare this product
Go to the Suzhou Honpine Precision Industry Co., Ltd. website for more information

Characteristics

Type
planetary
Shaft orientation
coaxial, right angle
Shaft configuration
solid-shaft, vertical output shaft, robot flange
Torque
200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 20 - 50 Nm, 500 - 1000 Nm, 10 - 20 Nm, 1000 - 5000 Nm
Mounting
flange-mounted, foot-mounted, shaft-mounted
Configuration
compact, flange
Number of stages
single-stage, multi-stage
Performance
high-precision, low-backlash, precision, high-torque, high-rigidity, high-performance, high-efficiency, for heavy loads, maintenance-free, low-noise, high-speed, zero-backlash, high-capacity
Applications
for the food industry, for servo motors, transmission, for industrial applications, for rotary tables, for machine tools, for medical devices, machine, for automation, for robotics, for cutting machines, for food industry machinery, for heavy-duty applications, packaging machine, for printing machines, for shaft
Other characteristics
high-quality, custom-made, mounted, IP65
Rotational speed

Max.: 10,000 rpm
(62,831.8531 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Backlash

Max.: 0 rad

Min.: 0 rad

Gear ratio

Max.: 200 unit

Min.: 3 unit

Weight

Max.: 83 kg
(182.98 lb)

Min.: 0.9 kg
(1.98 lb)

Description

Overview
HONPINE MYAR Series precision planetary gearbox is engineered for industrial motion control, offering a balance of accuracy, efficiency and configurability. Available in seven frame sizes (42–220 mm), single-stage ratios from 3:1 to 20:1 and multi-stage options up to 200:1. Rated output torque ranges from 14 Nm to 2,000 Nm. Backlash options and high transmission efficiency make the series suitable for servo motors, automation, CNC, packaging, conveyors, printing and OEM systems.

Key specifications (selected)
  • Frame sizes: 42, 60, 90, 115, 142, 180, 220 mm.
  • Reduction ratios: 1-stage 3:1–20:1; multi-stage up to 200:1 (stage-dependent).
  • Rated output torque: approx. 14–2,000 Nm (model and ratio dependent).
  • Maximum output torque: up to ≈3× rated (size-dependent).
  • Efficiency: up to ≤95% (single-stage); up to ≤92% (two-stage ranges).
  • Backlash grades: P0 (ultra-precision) ≤2 arcmin (where applicable, single-stage); P1/P2 options with higher values.
  • Rated/max input speed examples: MYAR042/MYAR060 up to 5,000 rpm (rated) / 10,000 rpm (max); larger sizes have lower limits (see datasheet).
  • Protection: IP65; lubrication: synthetic grease; operating temperature: -10℃ to +90℃.

Typical applications
  • Servo drives and motion control
  • Industrial automation and robotics
  • CNC machine tools
  • Packaging and printing equipment
  • Conveyor and handling systems
  • OEM integrated drives
