Bevel angle gearbox NER series

right angle90°flange

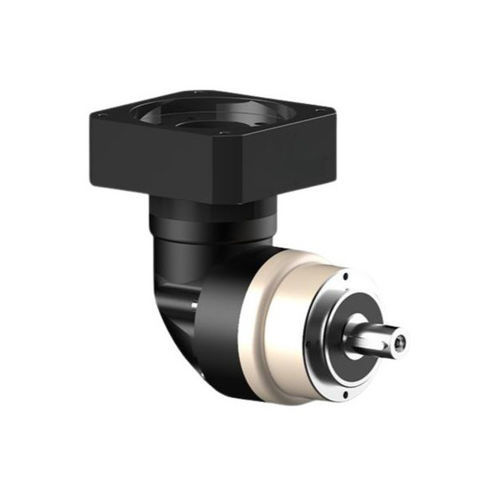

Product Introduction The Right Angle Round Frame Planetary Gearbox is a planetary gear transmission system with a vertical 90-degree layout between the input and output shafts, both positioned on the same plane. The planetary gearbox features a circular housing and a circular output flange. Power transmission and speed reduction are achieved through multi-stage gear meshing. Its compact and space-efficient design makes it ideal for general industrial applications with spatial constraints or requiring vertical input-output orientation. Features - Round Frame and Output Flange: The gearbox housing and output flange are designed in a circular structure. Screws are fastened vertically from the top downward, and additional flanges can be added to the circular output end. - Based on Customer Requirements: 90-Degree Input-Output Configuration. The perpendicular shaft arrangement optimizes space utilization and redirects output torque. - High-Efficiency Helical and Bevel Gears: Utilizes helical gears combined with an integrated bevel gear set, maintaining over 90% efficiency in multi-stage transmission. - High Precision and Low Backlash: Precision ground gears and a collet-style locking mechanism minimize backlash to ≤2 arcminutes (1/30 of a degree), meeting servo systems' stringent positioning accuracy requirements. - Exceptional Load Capacity: Multi-tooth meshing distributes loads evenly. Carburized and quenched gears paired with needle roller bearings enable output torque up to several thousand Nm and superior shock resistance. - Low Noise and Stable Operation: Patented noise-reduction technology and helical tooth rolling meshing design reduce operational noise while ensuring smooth, vibration-free performance. - Durability and Maintenance-Free Design: High-grade seals and permanent lubrication technology ensure a gear lifespan exceeding 20,000 hours, even in harsh environments with high temperatures or dust exposure. Specifications - Rated output torque: up to 1900 Nm (depending on model) - Backlash: as low as ≤2 arcmin (ultra-precise) - Efficiency: up to ≥95% - Protection class: IP65 - Service life: up to 20,000 hours - Operating temperature: -10℃ to 90℃ - Mounting: Any direction More information please view:https://www.honpine.com/products/Planetary-Reducer/Standard-Planetary-Reducer/Shaft-Output-Planetary-Reducer/Square-Flange-Speed-Reduction-Planetary-Gear-Transmisson-System.html
