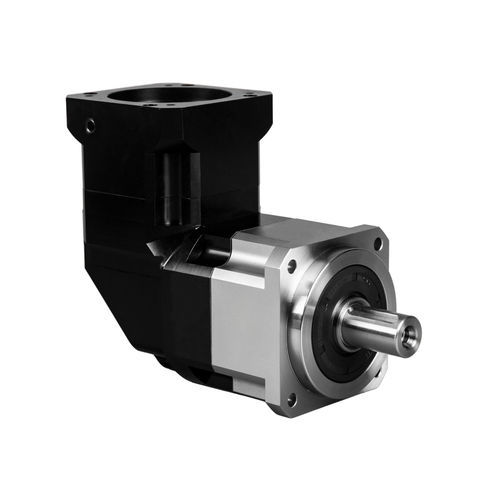

Spiral bevel angle gearbox NBR series

right angle90°flange

Product Introduction The right angle square frame output planetary reducer is a planetary gear transmission device featuring a vertical 90 degree layout between input and output shafts, with both shafts lying on the same plane. Characterized by its square housing and square output flange, this reducer achieves power transmission and speed reduction through multi-stage gear meshing. It offers a compact structure and space-saving advantages, making it particularly suitable for general industrial applications requiring spatial constraints compliance or vertical input-output orientation arrangements. Features ● Square Housing and Output Flange The reducer housing and output flange feature a square structure. Screws are fastened from the bottom upward, securing the unit to the mounting structure. ● 90 Degree Input Output Orientation The input and output shafts are oriented at 90 degrees, saving space and altering the output direction. ● High-Efficiency Helical and Bevel Gears All gears utilize helical teeth, with an integrated bevel gear set, ensuring high transmission efficiency. Multi-stage transmission maintains over 90% efficiency. ● High Precision and Low Backlash Precision gear grinding processes and a collet-style locking mechanism minimize backlash to within 2 arcminutes (1/30 of a degree), meeting the stringent positioning accuracy demands of servo systems. ● High Load Capacity A multi-tooth meshing design distributes loads evenly. Combined with carburized and quenched gears and needle roller bearings, the reducer delivers output torque up to several thousand Nm and exceptional impact resistance. ● Noise Reduction and Stability A patented noise-reduction structure and helical tooth surface rolling meshing design significantly reduce operational noise while ensuring smooth operation without vibration. ● Durability and Maintenance-Free Design Premium seals and lifetime lubrication technology extend gear service life beyond 20,000 hours. The reducer withstands harsh operating conditions, including high temperatures and dusty environments. More details please view:https://www.honpine.com/products/Planetary-Reducer/Standard-Planetary-Reducer/Right-angle-Planetary-Gear-Reducer/Right-Angle-Square-Housing-Output-Flange-Planetary-Reducer.html
