We offer:
• Inline Samplers (installed samplers on lines and processes)
• Manual Samplers (manually operated samplers)
• Sampling accessories / aids for sampling
|
|

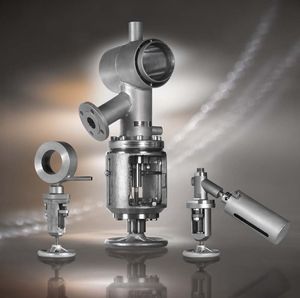

SchuF produces one of the broadest ranges of sampling valves available to the Refinery, Pharmaceutical, Fine Chemicals, Biochemical, Plastics and Polymer industries.
The valves are most commonly used to simplify the extraction of samples from or the injection into tanks, reactors, or pipelines and allow for trouble free service over long periods of time.
The SchuF range includes: Type 30 (line sampling and injection valves), Type 31/33 (wafer sampling valves), Type 32 (screw in sampling valves), and Type 35 (submersed sampling valves).
|
|
|
Sentry Equipment makes a variety of in-line, tank and closed loop sampling valves designed for safe, simple and accurate sampling. Needle or tube stub sample interfaces. Custom configurations to meet any process sampling need.
|
|
|

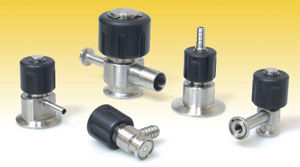

Top-Flo® sample valves are specially engineered to be the finest in the industry and incorporate many features and benefits not found on other sampling valves. Top-Floreg; sampling valves come standard with minimal internal deadleg area designed into each valve, keeping hold up volume to a minimum for accurate samples every time. Right Angle or In-Line models can be supplied as main components (special bored cap and main body) to allow the user to fabricate their own size configurations on an as needed basis. Right Angle or In-Line models available from stock in sizes 1/2" to 4" clamp end x hose barb.
|
|

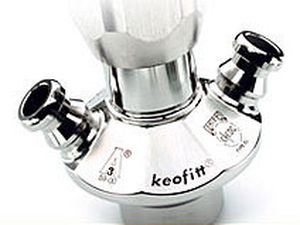

Milk, yogurt, jam, syrup, ketchup...when it comes to food production, you can’t be too careful with your samples.
Our unique steamable design makes it impossible for residues to hide and survive.
In combination with our aseptic system you can even protect your sample against airborne contamination – all the way – while taking the sample and while moving on transporting the sample to the laboratory.
Important: All Keofitt® valves complies with EHEDG and A3 requirements.
|
|
|
|
|
|
* The W15TM sampling valve is designed for sampling high viscosity products or for large samples of medium or low viscosity products, with particles up to 8mm in diameter. The main product range the W15TM is used in have about 0-50,000cP viscosity.
* The W25TM is the largest Keofitt® sampling valve. Designed for sampling of very high viscosity products or large samples of high viscosity products, with particles up to 17mm in diameter. The main product range the W25TM is used in has 0-250,000cP viscosity.
* The Ingold® sampling valve is designed for sampling medium viscosity products, with particles up to 1.2mm in diameter. The main product range are used in have about 0-800cP viscosity.
* The W9TM is the standard Keofitt® sampling valve, the valve others are measured to. Designed for sampling medium viscosity products, with particles up to 3 mm in diameter, if fitted with PTFE membrane and 2mm when fitted with silicone or EPDM membrane. The main product range W9TM valves are used for products that have about 0-1,000cP in viscosity.
* The M4TM sampling valve is the smallest Keofitt® valve, designed for sampling of low viscosity products, with particles up to 1.5mm in diameter. The main product range the M4TM valve is used for has 0-100cP viscosity.
|
|
O-Ring Sample Valve
Compact design
AISI 316L stainless steel
Small entrapment area
2037 and 3021 standard o-rings: silicon, Viton, Kalrez or EPDM
Fixed or removable PTFE handle
6 type of valve body connections
6 type of CIP/SIP connections (secondary valve, also!)
5 type of sample port connections
Fully customizable
|
|
|
Sampling valve type PA/F, PN 16, body material: ductile cast iron EN-JS 1049 acc. to DIN EN 1563 (0.7043 DIN 1693), glandless with bellows and safety packing, bellows and plug made of PTFE, valve seat EN-JS 1049 acc. to DIN EN 1563 (0.7043 DIN 1693) with PFA lining, epoxy coating, spring bonnet, pressure spring and nut and bolts made of stainless steel, valve actuation (lockable) with self-resetting lever, PTFE adapter for flange connection with thread to DIN 168 GL 45x4, face to face: DIN EN 558-1 basic series 1, ISO 5752 series 1 (DIN 3202F1), flange connecting dimensions: DIN EN 1092-2 type B, ISO 7005-2 type B (DIN 2533).
|
|
A manual or automatic sampling valve can be adapted at the hopper or container powder outlet with a standard containment or bottle system.
Available in stainless steel AISI 316L and according the latest technology standards like ATEX / GMP
Available sizes of the outlet tubes DN50 - DN500
|
|
Application:
To take liquid or pasty samples out of
- pipe lines
- containers
- tanks
for microbiological or chemical analysis.
For products without or with high or extremely highest demands on aseptic sampling.
Features:
Depending on the design:
- No dead ends
- CIP-compatible
- SIP-compatible
- Sterile sampling with syringe
- Manual and pneumatic operation
Design:
- For welding on
- With second connection (for sterilization)
- With pipe connections from the Nocado product lines
|
|
Sampling Valves
Compact systems for the extraction of representative samples from pipelines or reaction vessels, without process interruption
* Extracting representative samples from the process stream
* Sampling under operating conditions
* Eliminating contamination of process or environment
* Aseptic models available
* Modular design aids customisation of design
* Safeguards safety of plant and personnel
* Pressure class: Full vacuum to 16 bar
* Sizes: 1/2” - 4”, DN15 - 100
* Temperature range: -20°C to +200°C
|
|
|
|
|
|
The MV-8 Series manual sampling valve is designed for use in high purity semiconductor applications, and is also ideally suited for ultra-pure water or aggressive chemicals. The design utilizes a machined PTFE body with precision machined seat and diaphragm sealing areas. A one piece machined modified PTFE diaphragm is also utilized for excellent flexibility and life. The valve incorporates a full flow through port with a low dead volume down leg. The purge port option makes this the valve of choice for valve manifold boxes and distribution systems.
FEATURES:
* One piece precision machined diaphragm manufactured from the latest technology modified PTFE. Provides over five times the flexural life as compared to conventional PTFE. Benefits are high cycle life, lower replacement costs and less downtime
* Full flow through port reduces pressure drop
* Purge port option allows system maintenance downstream of valve without disrupting main flow
SPECIFICATIONS:
Materials of Construction:
* Wetted Surfaces - PTFE, Modified PTFE
* Non Wetted Surfaces - PVDF
Pressure Ranges:
* 27” Hg vacuum (913 mbar) to 120 PSIG (8.3 bar)
* Pressure ranges above are for operation at ambient temperature
Temperature Ranges:
* 0° - 212° F (-17° -100° C) Ambient
* 0° - 400° F (-17° - 204° C) Fluid
|
|
|
The W25TM is the largest Keofitt® sampling valve. Designed for sampling of very high viscosity products or large samples of high viscosity products, with particles up to 17mm in diameter. The main product range the W25TM is used in has 0-250,000cP viscosity.
|
|
M4TM sampling valve:
The M4TM sampling valve is the smallest Keofitt® valve, designed for sampling of low viscosity products, with particles up to 1.5mm in diameter. The main product range the M4TM valve is used for has 0-100cP viscosity.
|
|
