- Standard, easy-to-order assemblies fit a variety of applications
- RTDs, thermocouples, and transmitters
- Fittings, connection heads, and thermowells included
- Tip-sensitive, high temperature, explosionproof, and flameproof versions
- FM, CSA, and CENELEC approved models
- Unique spring-loaded holder ensures proper probe contact in thermowells or blocks
- Thermowells & transmitters optional
|
|

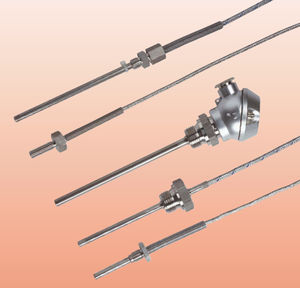

RTD and Thermocouple Probes
* Tip-sensitive (260°C) feature fast-responding copper tip in stainless sheath.
* Mineral insulated (600°C): Stable and rugged for demanding industrial environments.
* High temperature (850°C): Laboratory grade precision in an industrial probe.
* Diameters options include 0.125", 4 mm, 0.188", 0.215", 6 mm, 0.250"
* Single and dual elements
* Wide selection of adjustable fittings, thermowells, and connection heads available from stock
* Cut-to-length option lets you adjust probe length in the field
|
|
Fast and accurate readings from bearings, blocks, and other solids. Minco’s spring-loaded holder ensures solid contact in drilled holes and has a built-in oil seal. The sensing probe features a copper alloy tip for quick response to temperature changes.
- Tip-sensitive RTD probe for use to 260°C (500°F)
- Spring-loaded holder with fluid seal
- Cast iron, stainless steel, or aluminum connection head
|
|
Since 1984 B&B Thermo-Technik develop and manufacture successfully temperature probes.
New ideas were always a reason why B&B is one step further than its competitors. Our customers are the focus of our thinking and acting. For them we investigate, analize and realize almost everything in the temperature measurement.
Just send us your inquiry and we will supply you with a detailed offer and the solution for your measuring problem.
You will find our range of standard sensors in our Online-Shop:
www.temperature-shop.eu
There you will also get more information about our range of temperature measuring technics:
- Temperature / Humidity Sensors
- Thermocouple Connectors
- Digital Thermomters
- Infrared Thermomters
- Stationary Pyrometers
- Controllers
- Indicators
- Data Loggers
- Hygrometers
- Transmitters
|
|
In oder to meet with all applications, this new range is composed of thermocouple probes with connection head, heat resisting steel sheath, mounted on cable or malleable mineral insulated, with a measuring range from –40 to +1100°C.
The new range is also composed of Pt100 probes with standard connection head, threaded compression fitting, contact, ambient end, for food industry, penetration and with a measuring range from –40 to +400°C.
A large choice of accessories ( mounting brakets, compression fittings, connectors, cables ….) and converters offered by KIMO allow you to enlarge thermocouple and Pt100 working conditions.
Join our distribution network all over the word....Contact us !
|
|
- Tip-sensitive (260°C) feature fast-responding copper tip in stainless sheath.
- Mineral insulated (600°C): Stable and rugged for demanding industrial environments.
- High temperature (850°C): Laboratory grade precision in an industrial probe.
- Diameters options include 0.125", 4 mm, 0.188", 0.215", 6 mm, 0.250"
- Single and dual elements
- Wide selection of adjustable fittings, thermowells, and connection heads available from stock
- Cut-to-length option lets you adjust probe length in the field
|
|
Yuanben has developed manufacturing techniques that enable our sensor to pass testing without failure, tested for reliability in various harsh environmental, physical, and, electrical conditions. The manufacturing techniques include a sealing method that prevents the moisture intrusion condition from occurring. Our proprietary process has been proven reliable in many applications.
Temperature Sensors have also been subjected to environmental, electrical, and, physical testing to prove the longevity of the design
|
|
Since 1984 B&B Thermo-Technik develop and manufacture successfully temperature probes.
New ideas were always a reason why B&B is one step further than its competitors. Our customers are the focus of our thinking and acting. For them we investigate, analize and realize almost everything in the temperature measurement.
Just send us your inquiry and we will supply you with a detailed offer and the solution for your measuring problem.
You will find our range of standard sensors in our Online-Shop:
www.temperature-shop.eu
There you will also get more information about our range of temperature measuring technics:
- Temperature / Humidity Sensors
- Thermocouple Connectors
- Digital Thermomters
- Infrared Thermomters
- Stationary Pyrometers
- Controllers
- Indicators
- Data Loggers
- Hygrometers
- Transmitters
|
|
|
|
|
|
Contact Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- PVC, Silicone, PTFE, Stainless steel cable or in a case
- impact-resistant plastics case protection class IP65
Outdoor Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- optional case with external probe tube for fast detection
- impact-resistant plastics case protection class IP65
Screw-In Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- impact-resistant plastics case protection class IP65 optional with display, high-quality aluminium connecting head form J / form B
- brass or stainless steel immersion sleeve
Hand Infeed Sensors
- PTFE or plastic hand grip
- PVC, silicone or PTFE cable
- water-vapour-proof casted
Cable Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- PVC, Silicone, PTFE, Stainless steel cable with different lengths
- moisture sealed rolled
Duct Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- Impact resistant plastics case protection class IP65
- high-quality aluminium connecting head form J, form B
Surface Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- PVC, Silicone, PTFE, Stainless steel cable with different lengths
- self-adhesive, screw-on type, magnetic
Room Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, PTC, NTC, KTY Sensors
- modern room housing design with air slots
- alternatively with rotary switch, potentiometer, LEDs, level switch etc.
Radiation Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, PTC, NTC, KTY sensors
- measurement range -30...+75°C
- windchill factor
|
|
Examples:
-Screw-in resistance thermometers with connecting cable (90.2005)
for temperatures from -50 to +400°C
as single or twin resistance thermometer
in 2-wire, 3-wire or 4-wire circuit
connecting cable in PVC, silicone, Teflon or with metal braiding
-JUMO PROCESStemp Resistance thermometers for process technology with ATEX approval in stainless steel with 2-wire transmitter (HART/Ex) for temperatures from -200 to 600°C (90.2820):
for temperatures from -200 to 600°C
with protection tubes in stainless steel, titanium, tantalum, Inconel and Hastelloy
available with 2-wire transmitter (4 - 20mA / HART®) in Ex version
Ex II 1/2 GD EEx ia II C T1 - T6 IP 6x T80 - T400°C
Ex II 1/2 GD EEx d II C T1 - T6 IP 6x T80 - T400°C
with replaceable measuring insert
|
|
Applications:
- Machinery, plant and tank construction
- Energy and power plant technology
- Chemical industry
- Food and beverage industry
- Sanitary, heating and air-conditioning technology

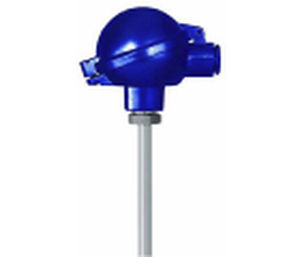

Special Features:
- Application ranges from -200 °C to +600 °C
- Suitable to assemble with all standard thermowell designs
- Spring loaded measuring insert (exchangeable)
- Explosion-protected versions Ex-i, Ex-n and NAMUR NE24
Description:
Resistance thermometers in this series can be combined with a large number of thermowell designs. Operation without thermowell is only recommended for specific applications. An extensive range of sensors, connection heads, insertion lengths, neck lengths, thermowell connections etc. are available for these thermometers, so that they are suitable for all thermowell dimensions and applications. Intrinsically safe designs are available for applications in hazardous areas.
|
|
Since 1984 B&B Thermo-Technik develop and manufacture successfully temperature probes.
New ideas were always a reason why B&B is one step further than its competitors. Our customers are the focus of our thinking and acting. For them we investigate, analize and realize almost everything in the temperature measurement.
Just send us your inquiry and we will supply you with a detailed offer and the solution for your measuring problem.
You will find our range of standard sensors in our Online-Shop:
www.temperature-shop.eu
There you will also get more information about our range of temperature measuring technics:
- Temperature / Humidity Sensors
- Thermocouple Connectors
- Digital Thermomters
- Infrared Thermomters
- Stationary Pyrometers
- Controllers
- Indicators
- Data Loggers
- Hygrometers
- Transmitters
|
|
|
Conax Technologies High Temperature Thermocouples are specifically designed for durability and reliability in high temperature applications to 4200° F (2315° C). Such applications generally involve oxidizing, reducing, inert gas or contamination atmospheres that challenge the life of the thermocouple. Conax brings more than 50 years of experience in the design and manufacture of temperature sensing devices to the selection of appropriate materials and designs to maximize the life and reliability of thermocouples in these environments. This catalog reviews the primary characteristics of materials used in thermocouple elements, sheaths and insulations and outlines our standard configurations.
|
|
|
|
|
|
Contact Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- PVC, Silicone, PTFE, Stainless steel cable or in a case
- impact-resistant plastics case protection class IP65
Outdoor Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- optional case with external probe tube for fast detection
- impact-resistant plastics case protection class IP65
Screw-In Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- impact-resistant plastics case protection class IP65 optional with display, high-quality aluminium connecting head form J / form B, cable sensor with screw thread
- brass or stainless steel immersion sleeve
Hand Infeed Sensors
- PTFE or plastic hand grip
- PVC, silicone or PTFE cable
- water-vapour-proof casted
Cable Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- PVC, Silicone, PTFE, Stainless steel cable with different lengths
- moisture sealed rolled
Duct Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- Impact resistant plastics case protection class IP65
- high-quality aluminium connecting head form J, form B
Surface Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, NTC, KTY Sensors
- PVC, Silicone, PTFE, Stainless steel cable with different lengths
- self-adhesive, screw-on type, magnetic
Room Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, PTC, NTC, KTY Sensors
- modern room housing design with air slots
- alternatively with rotary switch, potentiometer, LEDs, level switch etc.
Radiation Temperature Sensors
- Platinum Pt100, Pt1000, Nickel, PTC, NTC, KTY sensors
- measurement range -30...+75°C
- measures the windchill factor
|
|
Since 1984 B&B Thermo-Technik develop and manufacture successfully temperature probes.
New ideas were always a reason why B&B is one step further than its competitors. Our customers are the focus of our thinking and acting. For them we investigate, analize and realize almost everything in the temperature measurement.
Just send us your inquiry and we will supply you with an detailed offer and the solution for your measuring problem.
A range of standard sensors you will find in our Online-Shop:
www.temperature-shop.eu
There you will also get more information about our range of temperature measuring technics:
- Temperature / Humidity Sensors
- Thermocouple Connectors
- Digital Thermomters
- Infrared Thermomters
- Stationary Pyrometers
- Controllers
- Data Loggers
- Hygrometers
- Transmitters
|
|
|
|
|
|
Thermocouple Assemblies - Components and Descriptions
Conax Technologies thermocouple assemblies represent the culmination of 50 years experience in the design and manufacture of temperature sensors. Conax Technologies thermocouple designs have proven their durability and reliability in applications ranging from large industrial processing plants to highly specialized laboratory testing and validation. Our extensive knowledge of the science of temperature measurement and the physical properties of materials used for sheathing and insulation enables our sales engineers to recommend the most effective solutions to your application needs.
Conax Technologies thermocouple assemblies offer a wide variety of termination styles and mounting fittings, as well as extensive choices in sensor calibration, sheath diameter and sheath material. This section outlines the key choices needed to specify the correct Conax Technologies part description for your needs. In each case, you will be asked to select the:
*sensor calibration
*sheath material and size
*tip configuration
*termination style
*optional mounting configuration
*sheath length
If at any time you require assistance, call 1-800-223-2389.
|
|
In oder to meet with all applications, this new range is composed of thermocouple probes with connection head, heat resisting steel sheath, mounted on cable or malleable mineral insulated, with a measuring range from –40 to +1100°C.
The new range is also composed of Pt100 probes with standard connection head, threaded compression fitting, contact, ambient end, for food industry, penetration and with a measuring range from –40 to +400°C.
A large choice of accessories ( mounting brakets, compression fittings, connectors, cables ….) and converters offered by KIMO allow you to enlarge thermocouple and Pt100 working conditions.
Join our distribution network all over the word....Contact us !
|
|
- Tip-sensitive (260°C) feature fast-responding copper tip in stainless sheath.
- Mineral insulated (600°C): Stable and rugged for demanding industrial environments.
- High temperature (850°C): Laboratory grade precision in an industrial probe.
- Diameters options include 0.125", 4 mm, 0.188", 0.215", 6 mm, 0.250"
- Single and dual elements
- Wide selection of adjustable fittings, thermowells, and connection heads available from stock
- Cut-to-length option lets you adjust probe length in the field
|
|

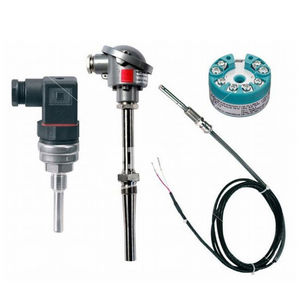

Pt 100 & Pt 1000 SENSORS , WITH WIRE CONNECTIONS:
Heito manufactures small thermostats called VIGITHERME, with fixed adjustment.
In order to satisfy the needs of some customers, HEITO is building up his range of products with Pt 100 or Pt 1000 sensors manufactured in cases similar to the Vigitherme thermostats.
This is platinum resistance 100 ohms or 1000 ohms at 0°C with approvals CEI 751 (class B).
The temperature sensitive range is -50°C to + 200°C. Connections are available with two, three or four wires.
|
|
ET50x series push-in resistance thermoprobes with terminal head are intended for measuring temperatures in liquids and gases. Applications include HVAC and refrigeration, heating installations,ovens, furnaces and plant engineering, as well as industrial automation.
- For measuring temperatures from -50 to +500 ° C
- Pt100, Pt500, Pt1000, PTC1000 or NTC resistance sensor
- Double RTD sensing element option
- Variety of DIN B type and miniature terminal heads
- AISI 316 s/s process connection, options of adjustable fittings
- Head-mountable transmitters available — to provide
0-10 V / 4-20 mA or RS485 Modbus RTU communication
|
|
Roessel resistance thermometers for particular applications:
- Grooved resistance thermometers
- Temperature sensors for heat quantity meters, government-certified
- Resistance thermometers for ocean vessel shipyards, GL-certified
- Resistance thermometers for the plastics industry
|
|
ET21x series screw-in resistance temperature probes are intended
for measuring temperatures in liquids and gases, ensuring reliable
process connection at negative or positive pressure. Applications
include heating, cooling installations and industrial automation.
- For measuring temperatures from -50 to +500 ° C
- Pt100, Pt500, Pt1000, PTC1000 or NTC resistance sensors
- Double RTD sensing element option
- Available in 2-wire, 3-wire or 4-wire circuit
- AISI 316 stainless steel protection tube with welded thread fitting
- PVC-, silicone-, teflon- or fiberglass-insulated cable
|
|
Various sensor shapes, exact measuring:
Measurement of temperature in controlled heat processes. We deliver the appropriate sensor for your applications from our standard range or according to your demands.
Thermo Sensors are needed in any controlled heating process. For various applications different types of thermocouples are obtainable. Most common are thermocouples (TC) and resistance sensors (RS). Both types are available in the same executions as a matter of princible. For non-contact measuring infrared sensors are the rights choice, either in stationary executions or as portable measuring instrument.
|
|
Our Advanced Thermal Products Operation specializes in the design and manufacture of custom temperature probes and assemblies that operate from -50°C to +500°C. Our sensor solutions cover a wide range of applications in both heating and cooling applications and we can manufacture a temperature probe to meet your exact needs.
Features
• Rugged, moisture resistant, temperature sensing probes and assemblies for cooling applications
• Effective in high moisture and freeze/thaw applications
• Sensor assemblies designed to handle the rigors of high temperature applications, such as gas temperature monitoring & cooking
|
|
Max. Temp: 150°C for Standard Probe
36" Insulated, 26 AWG Stranded Lead Wire
316SS Sheath
1/8, 3/16 and 1/4 " Diameter Sheaths Available
2252 Ohm, 0.2°C Elements Standard, Other 44000 Series Elements Also Available
|
|
K, T, J and E Thermocouple Types
Made from Class 1 Tolerance Wire
PFA Insulation. (max. 260°C)
Kapton Insulation (max. 315°C)
Glass Braid Insulation. (max. 480°C)
1 and 2m Lengths Standard
Max Service Temp for Connector Body 220°C
|
|
Thermtrol's temperature probe thermostats meet the exacting demands of the toughest industrial and commercial applications. Probe thermostats are thermally sensitive bimetallic switches housed in a rugged brass or stainless steel case. The switches are manufactured to either make or break an electrical circuit at a factory pre-set temperature and reset automatically on cooling. Some devices can be used as controlling thermostats, which cycle open and closed more rapidly to maintain a temperature level. Other devices can be used as over-temperature protectors to limit a temperature from exceeding a predetermined value. Thermtrol offers complete design flexibility for custom probe thermostats. We draw from an extensive inventory of standard components and build the thermostat that is correct for your application.
|
|
|
|
|
|
The Honeywell range of probes provides reliable temperature detection by conversion of temperature to a resistance value. The probes are compatible with the Honeywell Refrigeration range of temperature controllers and monitors.
The probes are available in 2k (two versions), 3k, 5k, 20k and PT1000 variants, and are all designed to operate in, and accurately detect, temperatures between -40°C and 100°C (-40° F and 212°F).
Probe Range
Black NTC 2k resistance @ 25°C (77°F)
Black* NTC 2k resistance @ 25°C (77°F)
Orange NTC 3k resistance @ 25°C (77°F)
Green NTC 5k resistance @ 25°C (77°F)
Brown NTC 20k resistance @ 25°C (77°F)
Red PTC 1k resistance @ 0°C(32°F)
Fitted with red sleeve for identification purposes only.
The probes are of single part design. They incorporate a temperature sensitive element, sealed in thermoplastic elastomer, molded on to the connecting cable. This design maintains accurate performance under conditions of extreme humidity.
Where a probe is required to sense the temperature of a pipe, a probe-clip kit is available to help ensure good thermal contact between the probe and various diameters of refrigerant pipe.
|
|
Type
Pt 100, 200, 500, 1000,
copper 50,53. etc
Element size (MI)
Wire wound ceramic encapsulated
Wire wound Glass encapsulated
Thin film ceramic encapsulated
Connection
2, 3, 4 wire
Accuracy
Class A, B 1/2, 1/3, 1/5, 1/10 DIN
Protection Sheath
SS 304, SS 316, SS 310, Inconel,
Hastalloy, Monel Etc
|
|
Teflon® probes / TF type probes
TF type in TeflonÆ PFA
Temperature probe
PT100 4 leads Teflon® PFA coated or PTFE coated
These probes are available in various materials (consult other probes)
|
|
|
|
