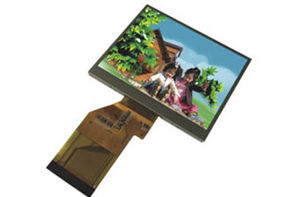

Very small display for motorcycle or other applications where there is very limited space to mount it, and not much resolution is required. Dimensions: 6.5" diagonal, 800x600 px resolution, 250 cd/m2 high brightness, SVGA connection to any Dewetron unit or PC with a VGA output. Includes special windshield mounts. Powered from 9-24 VDC, includes a 2 meter VGA cable.
|
|
Remote Displays DD900 series
- Display: 15" XGA / 19" SXGA, color-TFT, opt. Touch-Screen, customer specific front panel
- Remote installation: 100 m, Video, USB, CAN
- Protection: front IP65 / rear side IP54
- Housing: stand-alone, aluminium housing, support arm system
|
|
Developed and manufactured by our own in-house engineering group, the Data Modul eMotion analog controller series is tailor made for industrial customers.
Product stability for many many years– mechanically, electrically and even from the firmware point of view are most important to us.
The boards offer state of the art features, combined with the flexibility of adaptations for customized versions.
The “eMotion product family” is available in 2 different versions.
The Pixelworks based P1 can drive TTL as well as LVDS panels. It has on boards OSD, analog and PWM dimming and supports resolution up to WSXGA. The input signal is RGB/DVI/Video. The outline is 150x110x12mm
The Genesis based G2 is only available for LVDS panels, for RGB/DVI and supports resolution up to WUXGA
The footprint is only 96x96mm
|
|
|
Samsung LCD has surpassed me technical limitations ofl today's TFT-ICD monitors. Our technology Is redefining performance excellence with the world's highest contrast ratios and fastest response times. These LCD advancements enhance a vision of breathtaking reality in a variety of computing environments ranging from standard desktop applications to high-end multimedia LCDs. With a long list of compelling features, Samsung's line of large-size monitors is destined to raise the performance bar for the entire display industry.
|
|
|
|
|
|
* Rugged Flat Panel Displays and Monitors available in sizes 6" to 28"
* Bit-RDU's are fully ruggedized Displays which will survive the most extreme environments.
* Test-Proven Ruggedness, Tested and Certified to to MIL-STD-810F and optional to MilSTD 461E
* Up to IP67 sealed Aluminium casing prevent the penetration of heavy rain, host down water and dust
* Most of the units are designed to survive over 15G accelerations and drops from 3 feet
* Increased Operating Temperature Range -30°C to +70°C
Beltronic designs and manufactures high-performance displays and display systems for highly demanding key markets such as automation, vehicle and airborne electronics and traffic control applications. A complete package of integration services is offered providing the most flexible and configurable display solutions available for industry-critical missions. The flexible design allows for easy adaptation to customer requests. Target application platforms include airplanes, helicopters, surface ships, submarines, vehicles and mobile shelters. Its rugged flat panel displays (from 6-inch to 28-inch) feature a variety of electronics and have been tested to meet MIL-standard environmental specifications.
|
|
|
OSD2432A4-7UFLWC: Display Mode Transmissive Resolution 240xRGBx320 Overall Dimensions [mm] 42.72x84.26x3.0 Backlight White LED;150 cd/m2 Features/Options Touchscreen Option 16-bit CPU World Wide
|
|
unipo® flat panel UFP
The universal UFP Flat Panel replacement monitor in industrial quality (IP65) with its modular built is adaptable to any video signal (e.g. TTL, EGA, VGA, CGA, BAS, F-BAS, RGB, Comp.Sync, Interlace, Sync. on green etc.) - it matches for any control! Our various retrofitting-kits for over 500 different applications grant optimal fitting and perfect visual appearance.
A brilliant picture in industrial quality for 24hours continuous duty, best availability, easy installation and high dependability characterize the UFP - program by unipoÒ. Available in different sizes from 6“ up to 19”- and of course also procurable with touch-screen.
Tell us your plants, for which a visualisation replacement seems no longer available
– we have the economically best solution!
|
|
GVision’s Chassis monitors are designed with metal frame or plastic frame. They are all with various mounting methods such as VESA mounts standard for wall mounts, rack mounts and robot arms. The various viewing options make them an ideal solution for the industrial and POI markets.
|
|
Kontron KFM Series of Industrial LCD Monitors specifically is designed for industrial environment. For precise control and visibility KFMs provides ample display area as well as vivid images for your HMI applications.
|
|
Desktop / Rack Displays
The standard line includes high end desktop and mounting monitors assembled of industrial quality components.
|
|
22" Wide Resistive LCD Touch Screen Monitor
• Input Terminal
Analog
• Touch Panel
22" Wide 5 resistive touch screen
• Pixel Pitch
0.282×0.282mm
• Format
16:9
• Resolution
1680×1050
• Contrast Ratio
1000:1
• Brightness
300cd/m2
• Viewing Angle
H: 170° V: 160°
• Resolution(Max)
1680×1050
• Response Time
5ms
• Starting interface
VESA Standard
• Displaying Color
16.7M
• Input Voltage
AC 100-240V 50/60Hz
• Power onsumption
<48W
• Life
50,000Hours
• Input port
VGA,DVI(Optional)
• Dimension
525 ×75×379mm
• Package Dimension
560×170×480mm
• Net Weight/Gross Weight
6.5kg/8.1kg
• Certification
FCC, CE, RoHS
|
|
15" LCD Touch Screen Monitor
Resistive, Capacitive, SAW
- Touch Panel
15" 5 Wires Resistive Touch Screen or Capacitive Touch Screen or SAW Touch Screen Optional
- Input Terminal
Analog
- Pixel Pitch
0.297×0.297mm
- Resolution
1024×768
- Contrast Ratio
450:1
- Brightness
250cd/m2
- Viewing Angle
H: 150° V: 120°
- Resolution(Max)
1024×768@75Hz
- Response Time
12ms
- Band width
135MHz
- Starting interface
VESA Standard
- Displaying Color
16.7M
- Input Voltage
AC 100-240V 50/60Hz
- Power onsumption
<30W
- Life
50,000Hours
- Input port
VGA,DVI
- Dimension
364×53×304mm
- Package Dimension
430×190×410mm
- Net Weight/Gross Weight
3.5kg/5.6kg
- Container Quantity
970 pcs (20FT)
2011 pcs (40FT)
- Certification
FCC, CE, RoHS
|
|
Feature/Advantage
-Stable & Sturdy-
* Panel Size: 15"-22"
* Multi-Language OSD Control Menu
* Touch Technology: R5W, SAW or CAP
* Touch Interface: USB or RS-232
* Video Interface: D-SUB (VGA)
* Built-in Multimedia Speaker
* VESA Wall Mounting
* Hardware customization available
* Different stand or wall mount rack options
* Beautiful and superthin design
* Environmental protection and space saving
Application:
*Point-of-sale terminals
*Information Kiosks;
*Food Service and Preparation;
*Medical Instrumentation;
*Process Control Systems and Transportation Tracking;
*Vending and ticket sales;
*Electronic catalogs;
*Gaming; Lottery, and amusement;
*Public pay phones;
*Multimedia marketing;
*Banking/financial transactions;
*Industrial control rooms;
*Computer-based training.
|
|
* Panel size: 10.4"-19"
* Multi-language OSD Control Menu
* Touch technology: R5W, SAW or CAP
* Touch interface: USB or RS-232
* Video interface: D-SUB (VGA)
* Optional built-in multimedia speaker
* VESA wall mounting
* Hardware customization available
* Different stands or wall mounts rack options
* Super-thin design
* Stable & sturdy
* Environmental protection and space saving
Application:
* Point-of-sale terminals
* Information kiosks;
* Food service and preparation;
* Medical Instrumentation;
* Process control systems and transportation tracking;
* Vending and ticket sales;
* Electronic catalogs;
* Gaming; lottery, and amusement;
* Public pay phones;
* Multimedia marketing;
* Banking/financial transactions;
* Industrial control rooms;
* Computer-based training.
|
|
|
Add increased functions to your monitor, without the addition of a cumbersome mouse and keyboard. Desktop, open frame and panel mount LCD monitors all are available with one of many touch screen options. Resistive, capacitive or surface acoustic wave (SAW) touch screens are available on most of our LCD monitors.
|
|
Touch Monitor － PTM-1930
* 19" TFT LCD with 5-wire resistive touch screen
* Compact and robust base for space management
* Cost-effective solution for POS application, industrial computing applications
* 300 nits high brightness LCD, 1280 x 1024 resolution
* Support desktop stand or 75 x 75 VESA mounting standard
* Optional for resistive or capacitive touch screen
* Multi-lingual on-screen display (OSD) function
The Poindus Touch Monitor (PTM) series offers numerous features such as stable base that guarantee reliable foothold while operating. The back lighting has a lifetime of 50.000 Hours.
The 19" version integrated with resistive touch screen (optional : capacitive touch screen ) is communicated with embedded BOXPC to be the complete POS solution for retail or hospitality applications. Therefore it is flexible to meet your customer requests. High brightness (300 nits) TFT LCD is available in 19" version.
|
|
Touch Monitor － PTM-1730
* 17" TFT LCD with 5-wire resistive touch screen
* Compact and robust base for space management
* Cost-effective solution for POS application, industrial computing applications
* 300 nits high brightness LCD, 1280 x 1024 resolution
* Support desktop stand or 75 x 75 VESA mounting standard
* Optional for resistive or capacitive touch screen
* Multi-lingual on-screen display (OSD) function
The Poindus Touch Monitor (PTM) series offers numerous features such as stable base that guarantee reliable foothold while operating. The back lighting has a lifetime of 50.000 Hours.
The 17" version integrated with resistive touch screen (optional : capacitive touch screen ) is communicated with embedded BOXPC to be the complete POS solution for retail or hospitality applications. Therefore it is flexible to meet your customer requests. High brightness (300 nits) TFT LCD is available in 17" version.
|
|
|
Open frame LCD monitors are bare metal framed monitors with different form factors including metal/plastic housing, touch screens, digital/analogue/video inputs jacks and water/dust resistant IP standard, and tempered glass. GVision produces a wide range of various panel sizes including 6.4". 8.4", 10.4"12.1", 15", 17", and 19" even the enormous 40" for the POI market as well as for the industrial segment.
|
|
The TFT industrial monitor is a modern concept to replace old or defective CRT's and TFT's mounted in control units of different manufactures, e.g. Siemens, Gildemeister, Heidenhain, Fanuc, Philips, Deckel, MAHO, DMG, several injection molding machines, further CNC control units...
All Units are Made in Germany, using only high quality components. A mechanic housing, similar to the original Unit, makes it easy to exchange in just a few minutes.
Sizes from 6.4" up to 21" are available.
|
|
The Planar LC monitor family is designed for demanding outdoor kiosk applications such as gas pumps, ATMs and advertising boards, and indoor environments such as point-of-sale, financial kiosks and mass-transit ticketing systems.
Planar’s standardized design streamlines the production and field-testing process, reducing time and costs associated with product development. Available in a range of standard sizes from 8.4-inches to 15-inches, the LC products are easily customized with an optional thermal management system or vandal glass with proprietary Contrast Enhancement Technology (CET™).
|
|
The Allen-Bradley® VersaView industrial monitors offer industry leading reliability at very cost competitive prices. Whether your visualization application is on the factory floor or in a control room, the VersaView monitor portfolio has the mounting configuration and interface options you require.
VersaView industrial monitors deliver the latest in LCD flat panel technology for both the less demanding and more rugged industrial environments. Combine these monitors with any of the VersaView non-display industrial computers to create a powerful visualization, maintenance, control, or information computing solution.
|
|
|
Our LCD/TFT industrial monitors feature a sturdy design and are a result of our own engineering and production, thus safeguarding long-term product availability. The equipment is designed for 24 hour operation, deployable in a wide temperature range, available in a touch-screen version, and with protective glass with IP65 protection. Moreover, the monitors can be fitted with displays from a variety of manufacturers.
|
|
The Videoflyer™ and Remoteflyer™ range are self-contained digital media players and LCD display monitors for retail promotion, media networks and other media rich information systems.
A fully solid state system and easily integrated into "out-of-home" environments and POP fixtures. The Remoteflyer™ versions are designed for remote content management using the "RemoteTransfer™ system".
|
|
Large-screen LCD display systems from STRONGARM Designs offer a safe, durable and cost effective solution for overhead control room and plant floor displays in manufacturing, processing and all industrial environments.
These large-screen systems provide optimal presentation of graphics and information to improve plant floor processes and maximize the efficiency of information delivery.
|
|
Control line - Summary TFT replacement monitors
Replacement monitors for your CNC or SPS control system which have been already adjusted.
|
|
Planar's SD product line, featuring innovative StereoMirror™ technology, provides the highest quality stereoscopic image available. Only Planar StereoMirror monitors deliver the full resolution to both eyes for stunning stereo imaging and real 3D experience.
The SD line features 3 sizes: 17" with SXGA resolution (1280 x 1024), a 20" with UXGA resolution (1600 x 1200) and a wide-format 23" with WUXGA (1920 x 1200) resolution.
StereoMirror technology delivers stunning images for use in applications such as geospatial, photogrammetry, medical imaging, computational chemistry, molecular modeling and data visualisation.
The additional benefits of the Planar SD line include wide-angle viewing, which allows multiple simultaneous users and compatibality with several graphics cards.
|
|
|
|
|
|
The MicroTouch™ 15" CT150 Touch Monitor from 3M is designed for easy integration into kiosks, industrial enclosures and other installations where compact, touch-integrated displays are preferred.
Versatile Integration:
- Innovative design provides an array of mounting options
- Three bezel options for maximum design flexibility
- Accepts 12V DC or 110/220V AC power
- Remote OSD module simplifies display adjustments
High-Performance Display:
- 15" TFT LCD panel with 500:1 contrast ratio delivers crisp, vibrant images
- LCD display module that can be print-color matched, making it an ideal choice for photo kiosk applications
Rugged and Reliable:
- Robust metal enclosure with VESA compatibility provides mounting stability and protection for the LCD display
- 3M's proven MicroTouch ClearTek II touch screen technology and MicroTouch EXII electronics platform
- 3-year warranty
Important Certifications:
- FCC-B, CE, UL/cUL certifications are helpful in accelerating the UL certification process for kiosk solutions
- Full compliance to the European Union Directive on Restrictions on Hazardous Substances (RoHS)
|
|
|
|
|
|
3M MicroTouch™ ChassisTouch 17" LCD Enclosure Monitor
Slim, Compact Display offers Durable Touch Solution
The 3M MicroTouch™ ChassisTouch 17" LCD monitor combines a thin profile with multiple mounting options supporting space constrained enclosures designs. Back-mounted display controls are accessible even with the monitor sitting flush with the face of the enclosure, improving the aesthetics of your integration. The optional user installable bezel is available for applications requiring a more finished appearance.
The ChassisTouch 17" LCD's rugged metal enclosure provides mounting stability and protects the LCD from damage. Combined with 3M's MicroTouch ClearTek II technology the ChassisTouch 17" LCD is a winning combination for all public access environments concerned with durability.
Features
- Slim design is conducive to sleek kiosk design trends
- Robust metal enclosure provides mounting stability and protection for the LCD display
- VESA-mounting hole pattern on the back allows for arm mount capability or bracket-mounting within the enclosure
- Optional bezel available
- Bright 300 nit chassis solution
- High-contrast 17" TFT LCD panel delivers crisp, vibrant images
|
|
|
|
|
|
3M MicroTouch™ M170 17" LCD Touch Monitor
17-in LCD touch monitor with innovative mounting options
The MicroTouch™ M170 Touch Monitor from 3M provides customers with installation versatility from standard desktop or countertop applications to wall mount capability without the need for additional hardware. Full ninety degree tilt of the display head with a locking mechanism and keyhole base pattern make it easy use the M170 in wall mount applications like digital signage at little cost. A digital video connection supports streaming video.
The MicroTouch ClearTek II system provides the M170 with an optically superior touch screen that is durable and fast for a wide range of applications.
Features:
- Maximum touch stability
- Supports wall mounting with no additional hardware
- Positive locking adjustment mechanism for display angles from 0 to 90 degrees
- Locking on screen display controls
- Digital and Analog video support
- Peripheral Attachment System
- 100mm VESA mounting pattern
- IP65 rating
|
|
3M MicroTouch™ M150 15" LCD Touch Monitor
15-in LCD touch monitor with industry-proven user features
MicroTouch™ M150 15" LCD Touch Monitor from 3M delivers maximum touch stability. The patented design uses a spine, yoke and positive locking mechanism to keep the display head in place under rapid transactional input. A keyhole pattern in the base provides additional security and stability when needed.
The M150 uses the MicroTouch ClearTek II system which provides superior optics, durability from contaminants like dust, liquid and grime and speed for high transaction based environments.
Features:
- Maximum touch stability
- Locking on screen display controls
- Peripheral Attachment System for Magnetic Stripe Readers
- Positive locking mechanism for display angles from 0 to 60 degrees
- 75mm VESA mounting capability
- Keyhole base pattern
- IPX1 Rating
|
|
|
|
