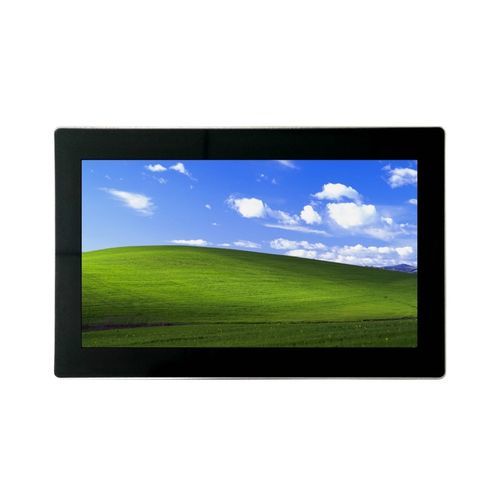

TFT-LCD monitor CK-ME7-OEMPCAP capacitive touch screenmultitouch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, PCAP capacitive touch screen, multitouch screen, LED backlight
- Applications
- industrial, marine
- Display size
- 7"
- Resolution
- 1024 x 600
- Mounting
- VESA mounting, panel-mount
- Other characteristics
- Linux, HDMI, USB, VGA, aluminum, DVI port, Windows 7, Windows 8, Android, Windows 10, IP65
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description
Description:
-IP65 waterproof industrial mountable 7" SVGA TFT LCD with 1024*600 resolution
-DC12V input
-Capacitor touch screen, with touch function
-With or without tempered glass optional
-Integrated aluminum milling panel and sheet metal rear box structure design
-Open installation (on the same plane as the cabinet) and VESA wall-mounted installation method
-VGA/HDMI multiple signal inputs
-Projected multi-point capacitor G+G touch screen, supports USB communication interface
-Support Win7, Win8, Win10, Linux, KylinOS, Android, Ubuntu, Debian operating systems
Marine console, industrial console:
Industrial control and marine control application that resists harsh environments with water, salt mist, humidity, or dirt, with or without touch function optional. Sizes optional from 7" to 32" that meet different size requirements of the customers all over the world.
- Type: 7" SXGA TFT LCD
- Resolution ratio: 1024*600（5：4）
- Backlight: WLED
- Brightness: 300cd/m²
- Contrast ratio: 500: 1 (Typ.)
- Light source lifespan: 20000H
- Response time: 19ms
- Color number: 16.7MB
- Working area: 154.2mm×85.9mm (H×V)
- Type: Projected multi-point capacitive touch screen with 10 points
- Total touch points: 10
- Response time: 7-12ms
- Touchable by: Fingers, conductive gloves and pen
- Refresh frequency: 60Hz
- Transmittance: >85%
- Supported OS: Win7, Win8, Win10, Linux, KylinOS, Android, Ubuntu, Debian
- OSD control: Light-touch switch
- OSD language: Support languages of multiple countries according to request
- Communication port: USB, DCIN
- Video port: VGA & HDMI(DVI optional)
- Body: Aluminum milling panel: anodized coating; back cover: SGCC sheet metal rear box structure; grounding isolation protection
- Dimensions: 180.13mm×116.2mm×30mm
- Mounting window size: 155.5mm×116mm
- Installation: Embedded mounting with clutch or VESA panel mounting
- Switch indication: Switches, indicator lights and OSD adjustment buttons are provided on the back of the machine
- Weight: 0.65KG
- Working temp.: -20~60℃
- Storage temp.: -20~70℃
- Relative humidity: 10% -90%，No Frost
- Vibration: 5-500HZ，1.5G，0.15mm peak
- Impact: 10G(11ms)
- Power input: DC12V
- Power consumption: 4W
