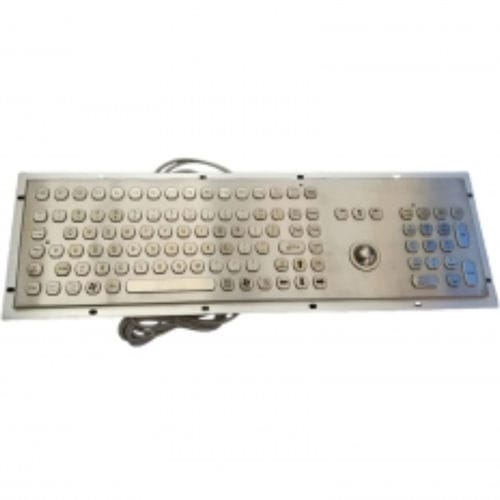

Panel-mount keyboard CK-KB478135-25TB

with mechanical keyswith trackballindustrial

The IP67 rated waterproof and brushed 304 stainless steel industrial keyboard with integrated 25.0mm laser trackball is an IK09 rated and fully-rugged panel mounted keyboard. It is specially designed to meet IP67 specifications, making it resistant to harsh environments including dirt, dust, water, ice, low temperature, and oil. This panel mount keyboard is fully customizable to meet different requests from various customers and can be mounted on different industrial machines or kiosks. Applications include petrol stations or gas stations, kiosks, industrial consoles, intelligent access control systems, and military use. Dimensions: 478.0mm x 135.0mm (front Panel). The keyboard layout can be produced in different languages, with customized letters or symbols according to user-specific requirements. Certifications: RoHS, CE, and FCC with a 12-month warranty. - Operating Temperature: -20 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP67 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 0.6 N+/-0.1N - Key Travel: 2.0 mm - Key switch Lifetime: 5 million operations - Lifetime of trackball mouse: more than 10 million operations - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: approx. 3.5 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: approx. 80mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS Compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android - Trackball mouse: 25.0mm laser trackball with +1200DPI resolution with more than 10 million cycle lifetime
