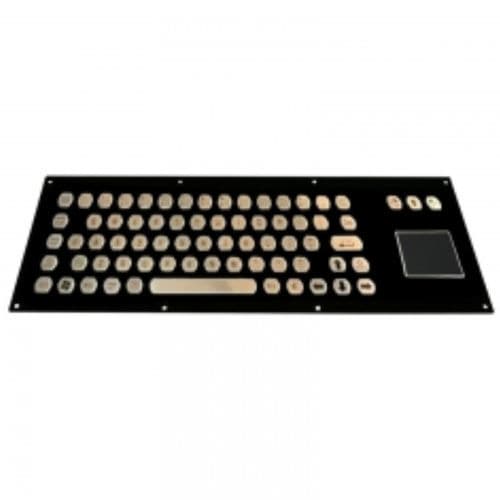

Panel-mount keyboard CK-KB13IN1-TP

with mechanical keyswith touchpadindustrial

IP65 rated waterproof and sealed 316L stainless steel keyboard with electroplated surface for console simulation or ship cab or fleet application. Robust and stainless steel keyboard with integrated industrial touchpad mouse for industrial or marine application. It is also specially designed with anti-corrosion 316L stainless steel that with the resistance ability not only for corrosion spray or salt mist environment, but also resistant to environment with much dirt, dust, water, ice, low temperature, chemical liquids, corrosives, disinfectants, oil, etc. A custom keyboard which owns all the robust features that the out field machines or device or industrial computer requests. With or without LED backlight optional. It's a custom keyboard with fully customizable features such as key's type, with or without LED backlight, mounting sizes, etc. It's complete stainless steel design with strong body for all kinds of cruel conditions and keep its smooth operation without influencing user's extremely important works. - Dimensions: 373.0mm x 132.0mm (front Panel). - Available to produce the keyboard's layout into different languages, different letters, customized letters or symbols according to user's specific requirements. - Certifications: RoHS, CE and FCC 12 months. Technical data: - Operating Temperature: 0 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP65 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 0.6 N+/-0.1N - Key Travel: 2.0 mm - Key switch Lifetime: 5 million operations - Lifetime of touchpad: more than 10 million slides - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: approx. 2.0 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: approx. 50mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS Compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android - Touchpad mouse: Mutual Capacitance sensing, X/Y position sensing resolution: 40 counts/mm, X/Y position reporting: Relative, Output: PS2 or USB, Tracking speed: Maximum 1,016 m/sec, Power supply voltage: 5 VDC ± 0.25V
