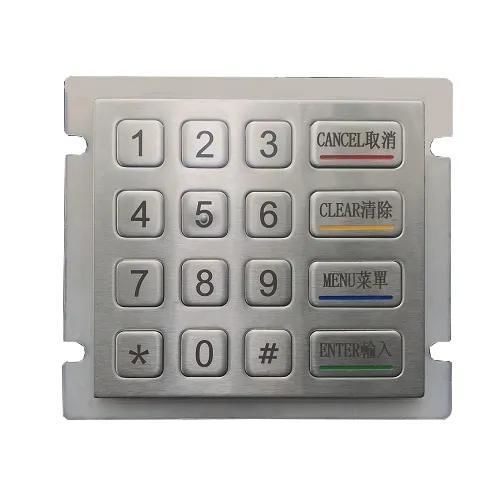

16-key keypad CK-KE10090-NG

panel-mount304 stainless steelUSB

Overview
CK-KE10090-NG is a 16-key IP67 waterproof and dustproof rugged panel-mount numeric keypad engineered for reliable operation in harsh environments. Constructed in stainless steel with vandal-resistant design and laser-etched legends for extended legibility.

Built to Endure, Designed to Perform
Manufactured from brushed 304 stainless steel with a 1.5 mm rear mounting panel, the keypad holds an IK09 vandal-proof rating and features a full-piece internal rubber seal for watertight protection. The ultra-flat surface enables easy cleaning and disinfection for high-hygiene, high-traffic installations.

Key Features That Define Excellence

• IP67 ingress protection against water, dust, dirt, oil and ice; 100% humidity resistant.
• Laser-etched characters remain legible for over 5 million key actuations.
• Premium tactile feedback via metal dome switches: 0.5 mm key travel and 2.0 N ± 0.2 N actuation force.
• Wide interface compatibility: Matrix, USB, PS/2, RS232; plug-and-play across Windows, Linux, Unix, Mac OS X, VxWorks and Android.
• Extreme temperature resilience: operating range -20 °C to +60 °C.
• Proven durability with average lifespan exceeding 6 years and MTTR < 30 minutes.

Certified Quality
Complies with CE, FCC and RoHS standards. Environmental tests include salt mist (96 hours), damp heat at +40 °C (21 days) and dry heat at +85 °C (10 days) per IEC 60512-6. IK09 vandal-proof rating and IP67 ingress protection ensure reliability in demanding conditions.

Versatile Across Industries

• Public kiosks: universities, malls, hotels, banks, airports, railway stations.
• Self-service terminals: ticket vending machines, ATMs/CDMs, charging stations, fuel dispensers.
• Industrial installations: automation consoles, clean rooms, operating rooms, oil & gas facilities.
• Harsh manufacturing environments, warehouses and public safety equipment.

Dimensions / Export certification / Warranty
Front panel dimensions: 100 mm x 90 mm.
Export certification: RoHS, CE, FCC.
Warranty: 12 months.

Technical specifications

• Item No.: CK-KE10090-NG
• Operating Temperature: -20 °C to +60 °C
• Storage Temperature: -30 °C to +70 °C
• Waterproof rating: IP67
• Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
• Electronics: Industrial level
• Humidity Resistant: 100%
• Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
• Actuation Force: 2.0 N ± 0.2 N
• Key Travel: 0.5 mm
• Key switch Lifetime: 5 million operations
• Average lifespan: > 6 years
• MTBF: > 50,000 h
• MTTR: < 30 min
• Gross Weight (G.W.): approx. 0.8 kg
• Supply Voltage: +5 V DC ± 5%
• Current Rating: approx. 30 mA
• EMC Emission: EN55022 (B)
• Salt mist: 96 hours, IEC 60512-6
• Damp heat test: at +40 °C: 21 days, IEC 60512-6
• Dry heat test: at +85 °C: 10 days, IEC 60512-6
• Supported OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OS X, VxWorks, Android
