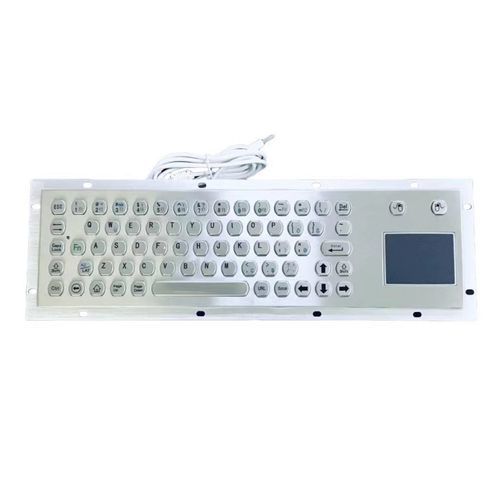

Panel-mount keyboard CK-KB370110-TP

carbon contactwith touchpadwith mouse

-Stainless steel rear mounting panel -One piece complete waterproof rubber inside -Integrated rugged tough touchpad -Laser engraving letters -Carbon connecting key switches -Available for customization Description: IP67 rated waterproof and vandal resistant brushed 304 stainless steel industrial keyboard with integrated tough touchpad, this is a fully-rugged panel-mounted keyboard. It is specially designed to meet IP67 specifications, which means it is resistant to harsh environment with salt mist, corrosion spray, dirt, dust, water, ice, low temperature, chemical liquids, corrosives, disinfectants, oil, etc. Technical data: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: - Industrial level Humidity Resistant: - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Actuation Force: - 0.6N+/-0.1N Key Travel: - 2.0mm Key switch Lifetime: - 5 mil. Operations Lifetime of touchpad: - more than 10 mil. slide Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 2.0KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 50mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Damp heat test: - at + 40º C: 21 days, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 OS: - Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android Touchpad mouse: - -Mutual Capacitance sensing -X/Y position sensing resolution: 40 counts/mm -X/Y position reporting: Relative -Output (self-detectable depending on cable): PS2 or USB -Tracking speed: Maximum 1,016 m/sec -Power supply voltage: 5 VDC ± 0.25V
