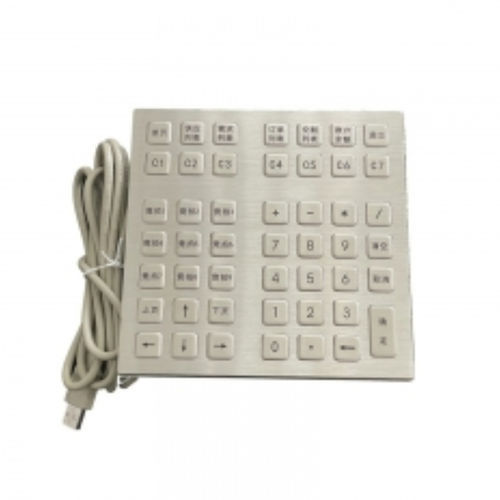

49-keys keypad CK-KE155155

panel-mount304 stainless steelwaterproof

49 keys IP67 rated waterproof and 304 stainless steel keypad and industrial keypad, this is a compact, and rugged panel mounted IK09 rated vandalproof keypad and waterproof keypad for kiosks and other industrial machines. It is specially designed to meet IP67 specifications, which means it is resistant to harsh environment such as dirt, dust, water, ice, oil, etc. - Petrol station or gas station: Kiosk, industrial console: Intelligent access control system: Military: It's available to produce the keypad's layout into different languages, different letters, customized letters or symbols according to user's specific requirements. RoHS, CE and FCC 12 months - Operating Temperature: -20 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP67 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 2.0 N+/-0.2 N - Key Travel: 0.5 mm - Key switch Lifetime: 5 mil. Operations - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: appr. 1.2 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: appr. 30 mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android
