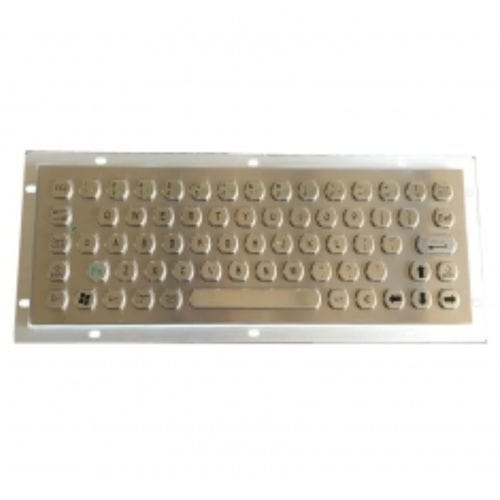

Panel-mount keyboard CK-KB299110

with mechanical keysUSBQWERTY

The IP67 rated waterproof keyboard is designed for industrial harsh conditions. It features a brushed stainless steel construction that resists collisions or vandalism in outdoor environments. This industrial keyboard is designed with IK09 rated and fully-rugged structures, making it suitable for panel-mounted applications. It is resistant to harsh environments including dirt, dust, water, ice, low temperature, and oil. It is ideal for use in kiosks at universities, shopping malls, hotels, banks, airports, railway stations, and other public areas, as well as industrial console desks, industrial automation, oil and gas industries, dirty manufacturing environments, warehouses, and public safety applications. Dimensions: 300.0mm x 110.0mm (front Panel). The keyboard layout can be customized into different languages, letters, or symbols according to user-specific requirements. It complies with RoHS, CE, and FCC standards and comes with a 12-month warranty. - Operating Temperature: 0 °C to +60 °C - Storage Temperature: -30 °C to +70 °C - Waterproof rate: IP67 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 0.6 N+/-0.1N - Key Travel: 2.0 mm - Key switch Lifetime: 5 million operations - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: approx. 1.5 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: approx. 30 mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS Compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android
