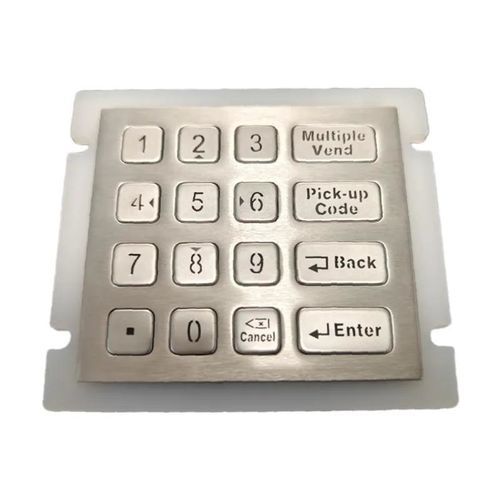

16-key keypad CK-KE10090-BLNG

panel-mount304 stainless steelUSB

Product overview
The CK-KE10090-BLNG is a rugged 16-key industrial numeric keypad designed for harsh environments and public self-service systems. It features a brushed 304 stainless steel front panel, IP67 waterproof and dustproof sealing, LED backlight, metal dome switches and a super-flat surface for easy cleaning. Suitable for kiosks, charging stations, industrial consoles, ATMs/CDMs, ticket vending machines, cleanrooms and other demanding indoor or outdoor applications.

Key features

• Stainless steel rear mounting panel with pre-drilled mounting holes for secure panel installation
• LED backlight for clear visibility in low-light conditions
• One-piece complete waterproof rubber inside to ensure IP67 protection
• Metal dome key switches providing tactile feedback and long lifecycle
• Laser-etched characters for durable legibility
• Customizable layout: multiple languages, special symbols, raised letters or braille

Design & durability
Brushed 304 stainless steel construction provides corrosion, impact and wear resistance. The keypad is rated IK09 for vandal resistance and has undergone saline mist, damp heat and dry heat tests to ensure reliability in extreme conditions. The super-flat front panel simplifies cleaning, making it suitable for healthcare and hygiene-sensitive environments.

User experience & compatibility
Keys offer 0.5 mm travel with a 1.5N ±0.2N actuation force, enabling accurate input even when wearing gloves. Supported interfaces include Matrix, USB, PS/2 and RS232 for broad system compatibility. The keypad is compatible with multiple operating systems including Windows, Linux, Unix, Mac OSX, VxWorks and Android.

Certifications & warranty
RoHS, CE and FCC certified. IK09 vandal-proof rating. 12 months (1 year) limited warranty.

Technical specifications

• Model / Item No.: CK-KE10090-BLNG
• Front panel dimensions: 100.0 mm x 90.0 mm
• Weight (G.W.): approx. 0.8 KGs
• Operating temperature: -20 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Waterproof rating: IP67
• Shock resistance: 3 axis 150 m/s² -11 ms (IEC 60512-4)
• Vibration resistance: 5 Hz - 200 Hz (IEC 60512-4)
• Humidity resistant: 100%
• Actuation force: 1.5N ±0.2N
• Key travel: 0.5 mm
• Key switch lifetime: 5 million operations
• Average lifespan: > 6 years
• MTBF: > 50,000 H
• MTTR: < 30 min
• Supply voltage: +5V DC ±5%
• Current rating: approx. 150 mA
• EMC emission: EN55022(B)
• Saline mist test: 96 hours (IEC 60512-6)
• Damp heat test: 21 days at +40 °C (IEC 60512-6)
• Dry heat test: 10 days at +85 °C (IEC 60512-6)
• OS compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, VxWorks, Android
