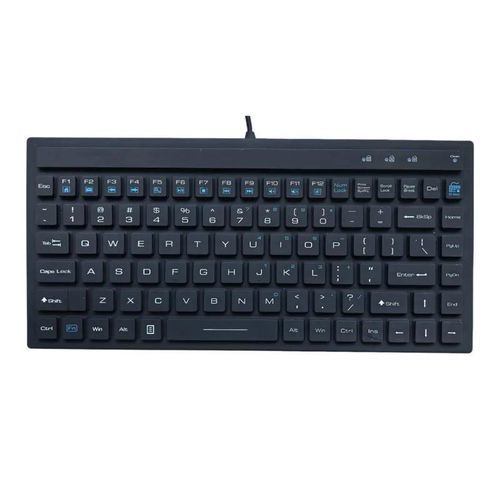

Desktop keyboard CK-KB287148-JSSI

carbon contactwith Fn keywith touchpad

Features

• IP68 dustproof and waterproof protection
• One-piece durable silicone rubber with antibacterial surface
• Carbon connecting key switches, 2.0 mm key travel
• Optional silicone colour customisation (black/white)
• Optional USB or PS/2 dual interfaces; broad OS compatibility

Overview
The CK-KB287148-JSSI is an industrial-grade waterproof and antibacterial silicone keyboard developed for harsh environments including industrial production, medical facilities and food processing areas. Its seamless silicone construction provides IP68 protection against dust, water, salt spray and chemical contaminants while the antibacterial surface facilitates cleaning and hygiene compliance required in regulated sectors.

The keyboard features carbon connecting key switches with 2.0 mm travel and an actuation force of 1.0 N ± 0.1 N to ensure reliable tactile response and reduced operator fatigue. Integrated FN shortcuts improve workflow. Interfaces are available in USB or PS/2 (plug-and-play), and the unit is compatible with Windows, Linux, Unix, Mac OSX, VxWorks and Android.

Designed for long-term operation, the product includes an industrial-grade PCB and has passed environmental tests for vibration, shock, salt spray, damp heat and dry heat. Key switch life is rated at 3 million operations; average service life >6 years; MTBF >50,000 hours; MTTR <30 minutes. Compact dimensions and low weight make it suitable for fixed workstations, medical carts and mobile equipment.

Dimensions
294(L) x 140(W) x 13(T) mm.

Export certification
RoHS, CE and FCC

Warranty
12 months

Technical data
Operating Temperature: -20 °C to +60 °C
Storage Temperature: -30 °C to +70 °C
Waterproof rate: IP68
Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Electronics: Industrial level
Humidity Resistant: 100%
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
Actuation Force: 1.0 N ±0.1 N
Key Travel: 2.0 mm
Key switch Lifetime: 3,000,000 operations
Lifetime of touchpad: >10,000,000 slides
Average lifespan: >6 years
MTBF: >50,000 hours
MTTR: <30 minutes
G.W.: appr. 1.0 kg
Supply Voltage: +5V DC ±5%
Current Rating: appr. 30 mA
EMC Emission: EN55022(B)
Saline mist: 96 hours, IEC 60512-6
Damp heat test: +40 °C, 21 days, IEC 60512-6
Dry heat test: +85 °C, 10 days, IEC 60512-6
OS compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, VxWorks, Android

Technical specifications

• Model: CK-KB287148-JSSI
• Protection: IP68 (dustproof & waterproof)
• Material: One-piece durable silicone rubber, antibacterial surface
• Key switch: Carbon connecting key switches
• Key travel: 2.0 mm
• Actuation force: 1.0 N ± 0.1 N
• Key switch life: 3,000,000 operations
• Touchpad life: >10,000,000 slides
• MTBF: >50,000 hours
• MTTR: <30 minutes
• Vibration: 5 Hz - 200 Hz (IEC 60512-4)
• Shock: 3-axis 150 m/s² - 11 ms (IEC 60512-4)
• Salt spray: 96 hours (IEC 60512-6)
• Damp heat: 21 days at +40 °C (IEC 60512-6)
• Dry heat: 10 days at +85 °C (IEC 60512-6)
• Supply voltage: +5V DC ±5%
• Current rating: approx. 30 mA
• Weight (approx.): 0.4 kg (net), G.W. approx. 1.0 kg
• Dimensions: 294 × 140 × 13 mm
• Certifications: RoHS, CE, FCC
• Warranty: 12 months
